COLORado 3 Solo je wash reflektor sa zumom koji u svakom okruženju daje vrhunske rezultate i naprednu optiku s tri 60-vatna RGBW LED motora koji projiciraju intenzivan, ujednačen i potpuno homogenizirani snop kroz brzu i glatku optiku zumiranja. Korištenje IP65 konektora za napajanje i podatke te potpuno konvekcijsko hlađenje omogućuje ovom uređaju da radi u svim vrstama okruženja.

• RGBW LED wash zoom reflektor za koncerte, rental i produkciju, u zatvorenom ili na otvorenom

• Potpuno homogenizirani wash efekt uz miješanje boja i zumiranje

• Glatko i brzo zumiranje od 8 ° do 45 °

• Funkcionira u svakom okruženju s IP65 napajanjem i DMX priključcima

• Unaprijed postavljene temperature boje, od 3200 do 10000K (Color temperature presets)

• Krivulje s glatkim zatamnjivanjem za svestranost programiranja

• OLED display sa zaštitnom lozinkom

Specifikacije

OPTICAL

• Light Source: 3 LEDs (quad-color RGBW) 60 W, (4.4 A), 50,000 hours life expectancy
• Beam Angle: 4° to 34°
• Field Angle: 8° to 45°
• Zoom Range: 4° to 45°
• Illuminance (4°): 15,280 lux @ 5 m
• Illuminance (34°): 313 lux @ 5 m
• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 25 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 5
• Built-in Automated Programs: Yes
• Customizable Programs: Yes
• Recall Custom Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 250 x 314 x 413 mm
• Weight: 9 kg
• Exterior Color: Black
• Housing Material: Magnesium
• Accessory Holder/Gel Frame Size: 191 mm

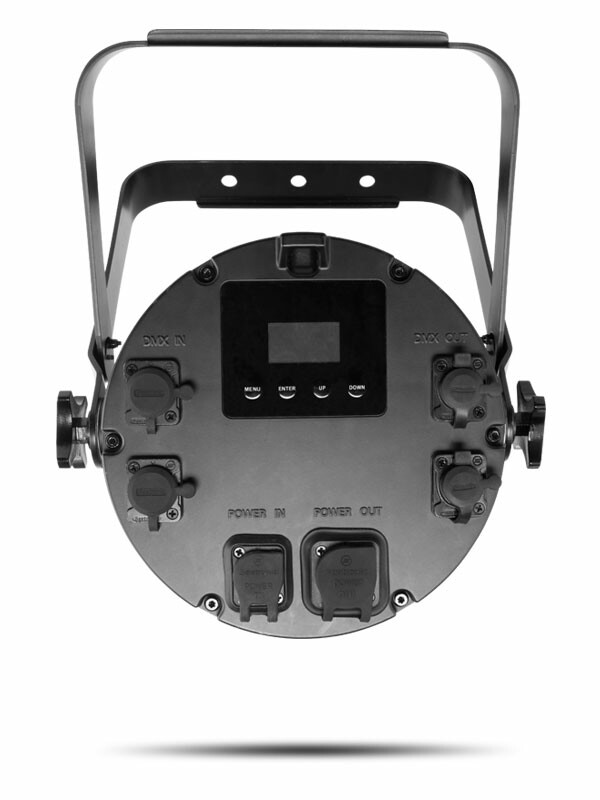

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 3- and 5-pin IP65 XLR
• Cable Length (power): 1.5 m

CONTROL

• Protocol(s): DMX, RDM
• DMX Channels: 9, 12, or 17
• Modes/Personalities: 4 personalities (HSIC, SSP, TOUR, TR16, STD.Y)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 15 units @ 230 V
• Power and Current: 175 W, 0.869 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve

WHAT'S INCLUDED

• COLORado 3 SOLO
• Seetronic Powerkon IP65 power cord

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Neutrik TRUE1 power linking cables
• 5-pin DMX Cables
• Color Blending Filters: DF60X1D, DF20D
