COLORdash Batten-Quad 12

Includes: powerCON Power Cord, L-Brackets
Control: 3-pin DMX, 5-pin DMX

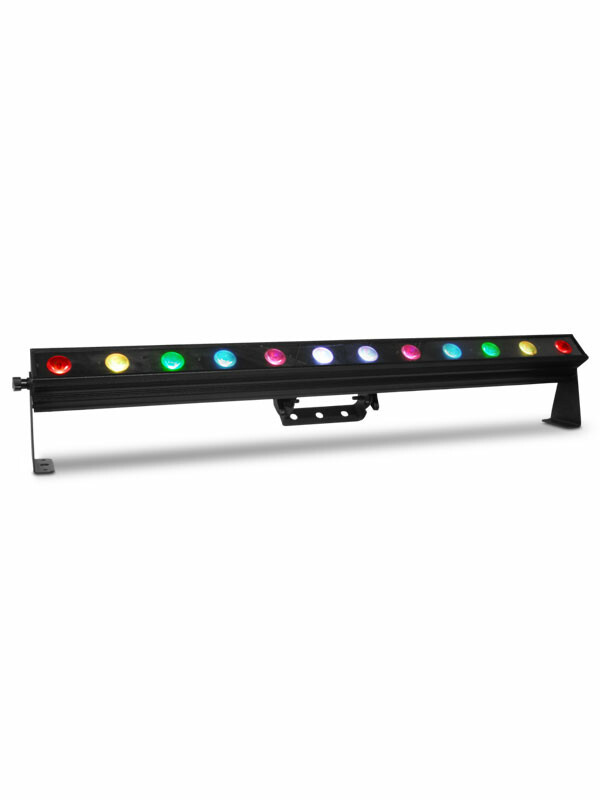

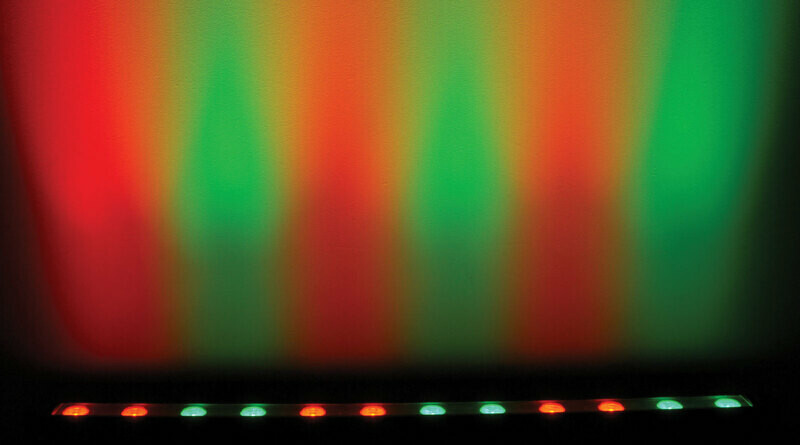

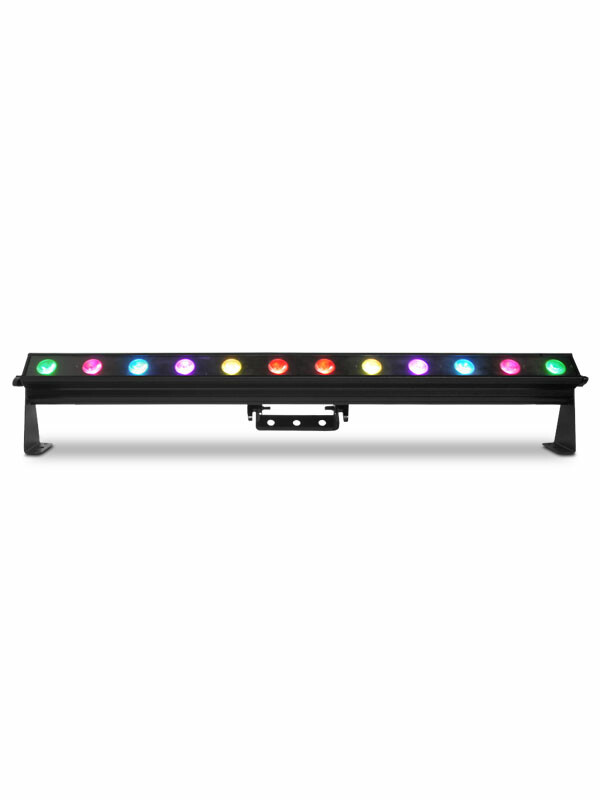

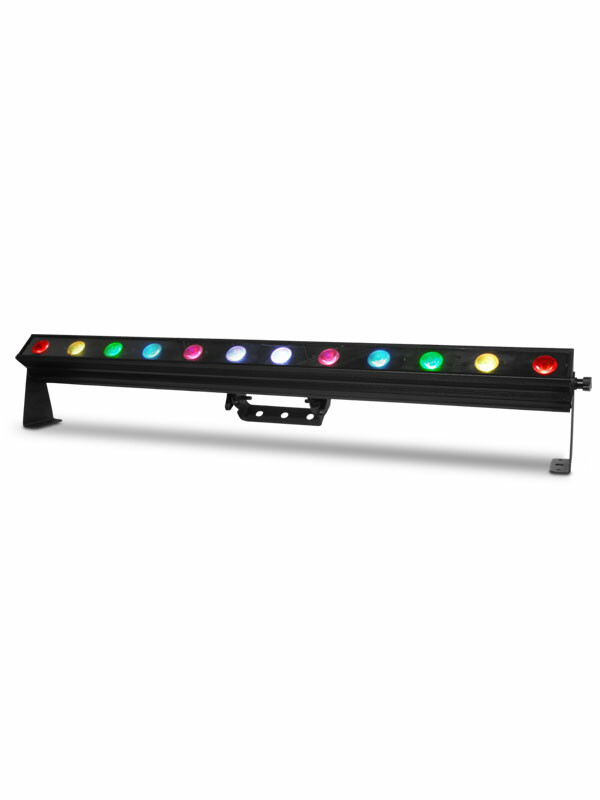

COLORdash Batten-Quad 12 is a linear wash fixture with 12 individually controllable quad-colored RGBA LEDs that produce any variation of white as well as richly saturated colors due to the inclusion of amber LEDs. It pixel maps beautifully when used in multiples because it maintains an even pixel pitch. Setup is easy with a hanging bracket, floor trunnions, secure Neutrik® powerCON® power in and out, and 3- and 5-pin DMX connections.

AT A GLANCE

Built-in auto and custom programs recalled via DMX or Master/Slave

Metal construction for added durability

Individual pixel control

Silent flicker-free operation

Mount multiple units in stack or end-to-end to maintain pixel pitch

SPECIFICATIONS

OPTICAL

Light Source: 12 LEDs (quad-color RGBA) 7 W, (500 mA), 50,000 hours life expectancy

Color Temperature (range): 2,800 to 10,000 K

Installed Optics: 20°

Beam Angle: 22°

Field Angle: 31°

Illuminance: 539 lux @ 5 m

PWM Frequency: 600 Hz

DYNAMIC EFFECTS

Dimmer: Electronic

Shutter/Strobe: Electronic

Strobe Rate: 0 to 20 Hz

Standalone Color Mixing: Yes

Color Temperature Presets: Yes

Dim Modes: 4

Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

Dimensions: 41 x 3.2 x 6.5 in (1041 x 82 x 164 mm)

Weight: 10.6 lb (4.8 kg)

Exterior Color: Black

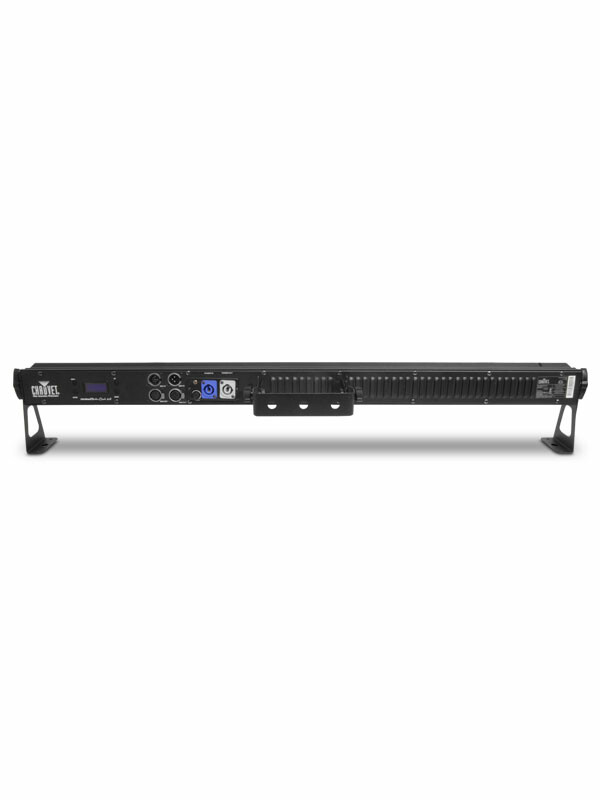

CONNECTIONS

Power Connection: Edison plug to Neutrik powerCON

Power Input: Neutrik powerCON

Power Output: Neutrik powerCON

Data Connectors: 3- and 5-pin XLR

Cable Length (signal): 5 ft (1.5 m)

CONTROL

Control Protocol: DMX

DMX Channels: 4, 6, 10, 48 or 52

Modes/Personalities: 5 personalities (4CH, 6CH, 10CH, 48CH, 52CH)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

Power Linking: 7 units @ 100 V; 9 units @ 120 V; 15 units @ 208 V; 16 units @ 230 V; 16 units @ 240 V

Power and Current: 100 W, 1.51 A @ 100 V, 60 Hz

Power and Current: 98 W, 1.28 A @ 120 V, 60 Hz

Power and Current: 96 W, 0.788 A @ 208 V, 60 Hz

Power and Current: 95 W, 0.743 A @ 230 V, 50 Hz

Power and Current: 95 W, 0.709 A @ 240 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

CE, MET

IP Rating: IP20, dry location

WHAT'S INCLUDED

COLORdash Batten-Quad 12

Neutrik® powerCON® power cord

2 Trunnions

OPTIONAL ACCESSORIES

Professional Clamps: CTC-50HC, CTC-50HCN

Neutrik powerCON cables

3-pin or 5-pin DMX Cables

DOWNLOADS

 COLORdash Batten-Quad 12 Quick Reference Guide

 COLORdash Batten-Quad 12 User Manual

 COLORdash Batten-Quad 12 DMX Chart

 COLORdash Batten-Quad 12 CAD

 COLORdash Batten-Quad 12 ShowXpress Profile

 COLORdash Batten-Quad12-IES Files

 COLORdash Batten Quad 12 Photometrics Report

 Download ChamSys Personalities File
