Uključuje: PowerCON kabel za napajanje
Kontrola: 3-pinski DMX, 5-pinski DMX

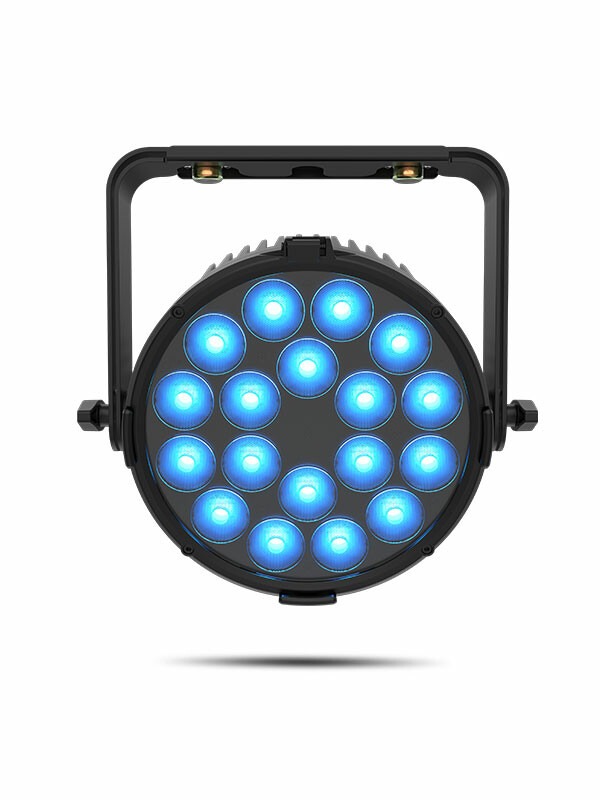

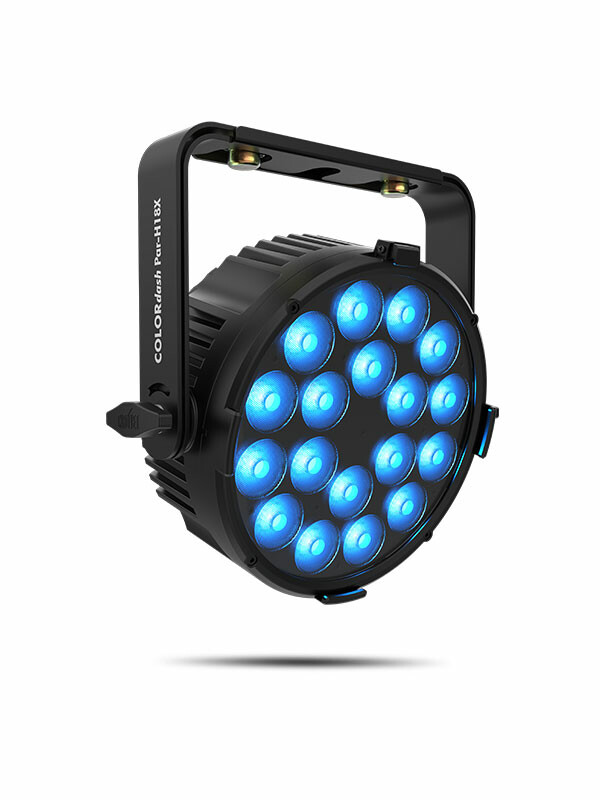

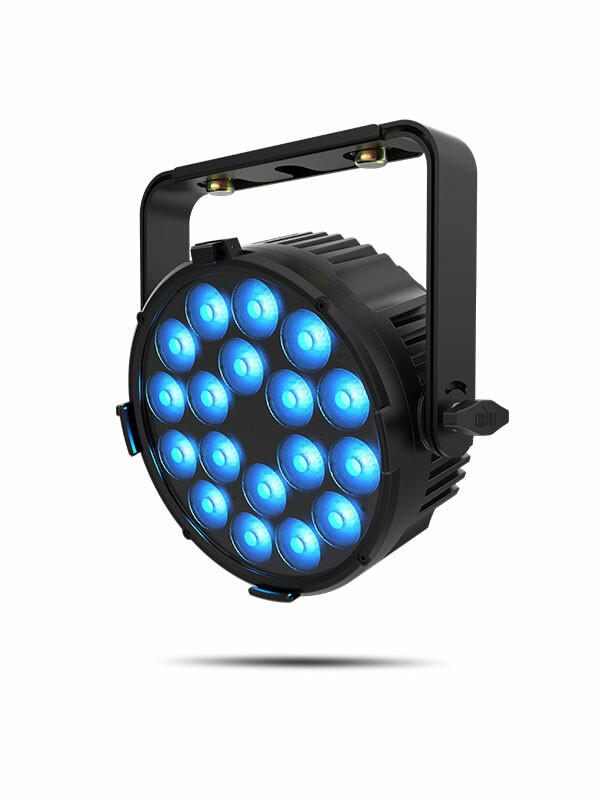

The powerful COLORdash PAR H18X RGBWAUV LED wash efficiently delivers a broad palette of subtle to saturated color with beautiful precision and over 5,700 lumens of output. Flawlessly smooth 16-bit fades with four selectable dimming curves. Flicker-free output with multiple PWM frequencies. Punch up a hot pink, mix a delicate pastel, pick a perfectly calibrated Kelvin color temperature, or trigger intense strobe effects. With RDM to remotely choose its DMX personality and an OLED display to easily read its onboard menu, the COLORdash PAR H18X is a die-cast workhorse that withstands the rigors of real world use while offering convenient operation and excellent performance, in the rig or on the floor, live or on camera.
AT A GLANCE
Rugged RGBWA-UV LED wash for events
Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera
RDM (Remote Device Management) for added flexibility
Selectable, smooth dimming curves for eliminate flicker and choppiness in fades
Easy to read OLED display with password protection and touchscreen interface
Advanced optics provide exceptional color mixing and high efficiency
Double-bracketed yoke with omega bracket doubles as floor stand
SPECIFICATIONS
OPTICAL
Light Source: 18 LEDs (HEX-color RGBWAUV) 150 W, (550 mA), 50,000 hours life expectancy.
Color Temperature (range): 2800 to 10,000K
Color Temperature (at full): 9507K
Beam Angle: 23.6°
Field Angle: 38.6°
Lumens: 5,736
Illuminance: 1,207 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 20 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 12.45 x 4.38 x 8.68 in (316.4 x 111.5 x 220.7 mm)
Weight: 10.4 lb (4.7 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
Accessory Holder/Gel Frame Size: 9.25 in (235 mm)

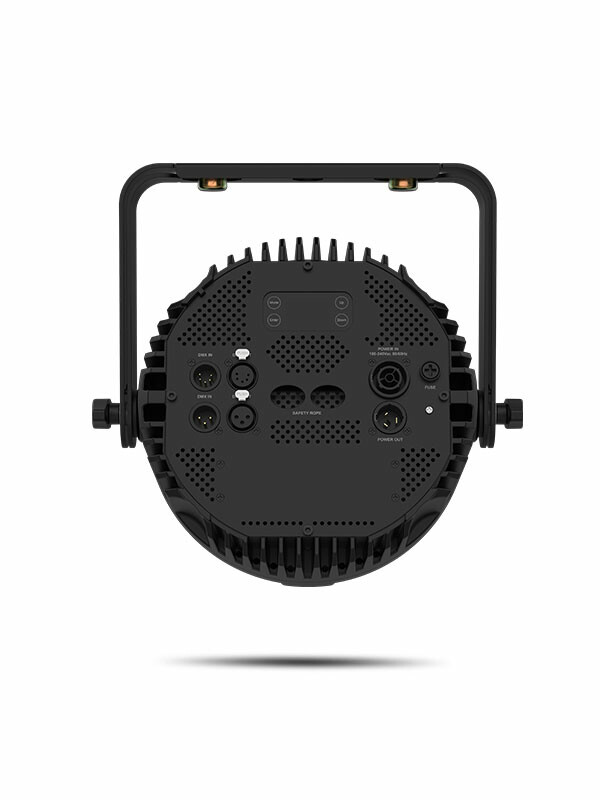

CONNECTIONS
Power Connection: Edison (local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 6, 8, 9, 13 or 14
Modes/Personalities: 3 personalities (6ch, 8ch, 9ch, 13ch, 14ch)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 9 units @ 120 V; 15 units @ 208 V; 17 units @ 230 V
Power and Current: 155 W, 1.305 A @ 120 V, 60 Hz
Power and Current: 153 W, 0.773 A @ 208 V, 60 Hz
Power and Current: 152 W, 0.704 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC, UKCA
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
COLORdash PAR H18X
Seetronic Powerkon IP65 power cord
Gel frame holder
Omega bracket
Quick Reference Guide or User Manual
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3- or 5-pin DMX Cables
Barndoor
