Chauvet Professional EPIX Drive 2000 IP

Kataloški broj: EPIXDRIVE2000IP

ÉPIX Drive 2000 IP je host za kontrolu i napajanje ÉPIX IP i Tour sustava sa IP 65 zaštitom za vanjske uvjete. S maksimalnim kapacitetom od 2000 LED dioda, ÉPIX Drive 2000 IP podržava Art-Net, Kling-Net i saACN, dajući vam razne mogućnosti upravljanja. Zahvaljujući integriranom web poslužitelju, možete daljinski dijagnosticirati, rješavati probleme i mijenjati postavke po potrebi bez izravnog pristupa ÉPIX uređajima. Koristeći nove 7- i 8- kanalne načine rada možete brzo i jednostavno konfigurirati i programirati emisije u nekoliko minuta uz minimalno vrijeme/napor za stvaranje vrhunskog programa.





AT A GLANCE

  • The processing and power center of the ÉPIX Tour system will drive any combination of ÉPIX Tour products, up to 2000 LEDs.
  • Versatile control options include Art-Net, Kling-Net, and sACN (streaming ACN) to support the touring/rental/installation markets.

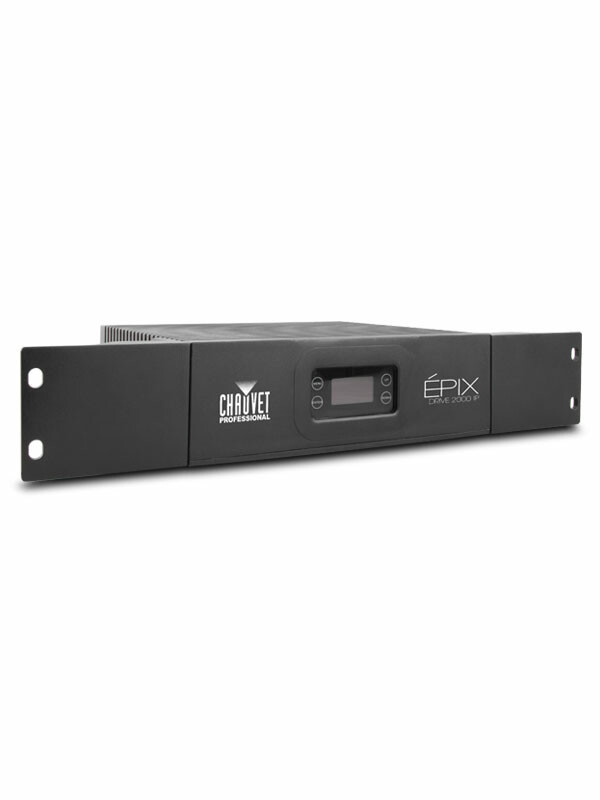

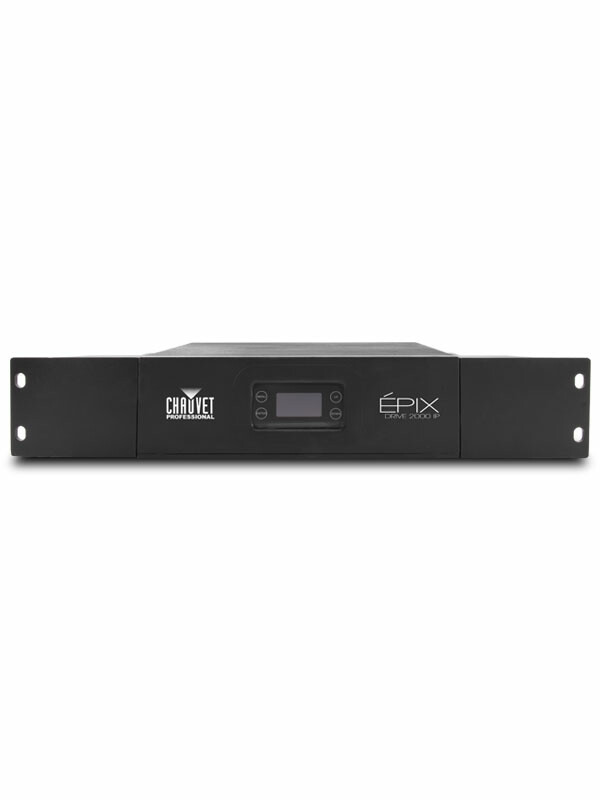

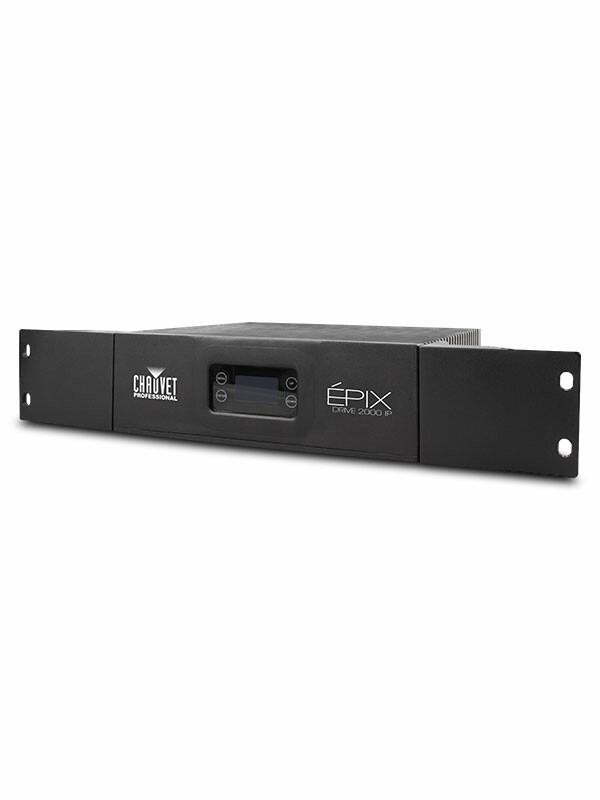

  • Quickly and easily configure the ÉPIX Drive 2000 IP using the built-in OLED display and touchscreen menu.
  • Easily detect and automatically configure your devices using the auto-address function, regardless of fixture order or type (Bar/Strip/Strip IP).
  • Supports up to 20 ÉPIX Strip IP, 36 ÉPIX Strip Tours or 12 ÉPIX Bar Tours.
  • Easily daisy chain fixtures directly from the 2 outputs of the Drive 2000 IP.
  • Advanced power management design allows you to position the Drive 2000 IP up to 150 ft away from your last fixture (using unshielded cable).
  • Works with Arkaos Media Master Express and the Kling-net control protocol for a plug-n-play system that requires almost no training to operate.

SPECIFICATIONS

CONSTRUCTION / PHYSICAL

  • Dimensions (with rack ears): 19.01 x 3.30 x 10.35 in ( 483 x 84 x 263 mm)
  • Dimensions (without rack ears): 10.55 x 3.30 x 10.35 in (268 x 84 x 263 mm)
  • Weight: 12 lb (5.4 kg)
  • Exterior Color: Black
  • Housing Material: Aluminum
  • Rackmount: 2U

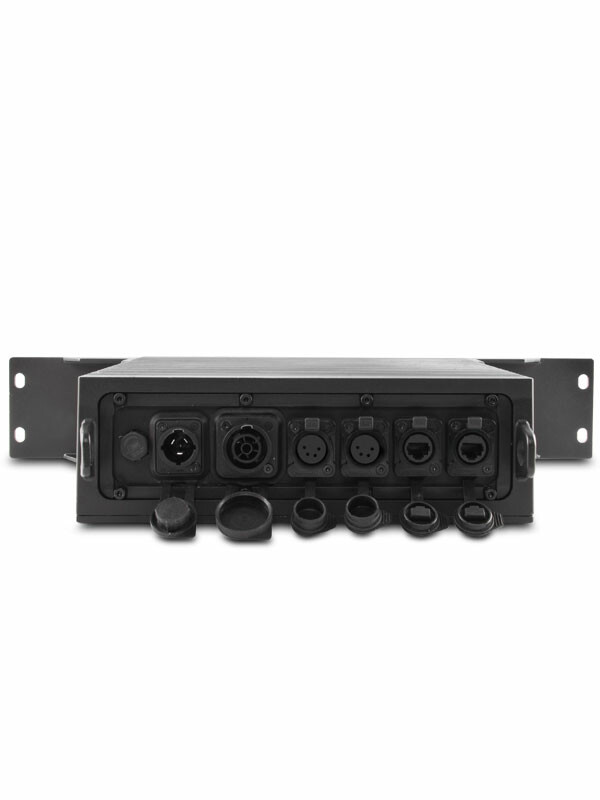

CONNECTIONS

  • Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
  • Power Input: Seetronic Powerkon IP65
  • Power Output: Seetronic Powerkon IP65
  • Device Outputs (4-pin XLR): 2
  • Physical Linking (port A): 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
  • Physical Linking (port B): 10 inline ÉPIX Strip IP Tour, 18 inline ÉPIX Strip Tour or 6 inline ÉPIX Bar Tour
  • Data Connectors: Seetronic Etherkon IP65
  • Cable Length (power): 5 ft (1.5 m)
  • Minimum required device linking cable size: 4 conductor (2 x 14 AWG, 2 x 16 AWG)
  • Total max. cable length (shielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 210 ft (64 m)
  • Max. cable length (shielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 65 ft (20 m)
  • Max. cable length (shielded cables) between ÉPIX Tour or IP fixtures: 60 ft (18 m)
  • Total max. cable length (unshielded cables) between ÉPIX Drive 2000 and last ÉPIX Tour or IP fixture: 300 ft (91 m)
  • Max. cable length (unshielded cables) between ÉPIX Drive 2000 and first ÉPIX Tour or IP fixture: 150 ft (45 m)
  • Max. cable length (unshielded cables) between ÉPIX Tour or IP fixtures: 100 ft (30 m)



CONTROL

  • Control Protocol: Art-Net, Kling-Net, sACN
  • Control Universes: 10 Art-Net/sACN Universes per port (20 total per device)
  • Control Channels (Art-net, sACN): 7, 8, 15, 30, 75, or 150



ELECTRICAL

  • Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
  • Power Linking: 3 units @ 120 V; 5 units @ 208 V; 5 units @ 230 V
  • Power and Current: 530 W, 4.68 A @ 120 V, 60 Hz
  • Power and Current: 560 W, 2.69 A @ 208 V, 60 Hz
  • Power and Current: 558 W, 2.5 A @ 230 V, 50 Hz
  • Power and Current (resting): 16 W, 0.136 A @ 120 V, 60 Hz
  • Power and Current (resting): 31 W, 0.147 A @ 208 V, 60 Hz
  • Power and Current (resting): 31 W, 0.138 A @ 230 V, 50 Hz
  • Output Voltage: 48 VDC
  • Maximum Load: 10 ÉPIX Strip IP or 18 ÉPIX Strip Tour or 6 ÉPIX Bar Tour (per output)



CERTIFICATIONS / QUALIFICATIONS

  • CE, MET
  • IP Rating: IP65, outdoor/wet, with pressure equalizing M12 GORE® valve
  • Temperature (ambient): -4 °F to 113 °F (-20 °C to 45 °C)
  • MET Listing Number: E113093-1101
  • US Safety: UL 8750, UL 1573
  • Canadian Safety: CSA C22.2 No. 250.13-12, CSA C22.2 No. 166



WHAT'S INCLUDED



REQUIRED ACCESSORIES

  • Compatible Mounting Options: M12 Clamp



OPTIONAL ACCESSORIES
