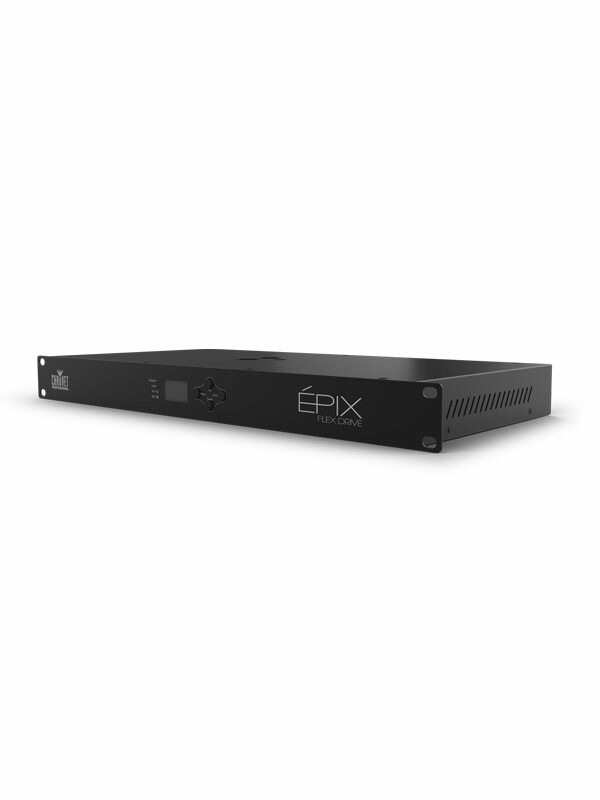

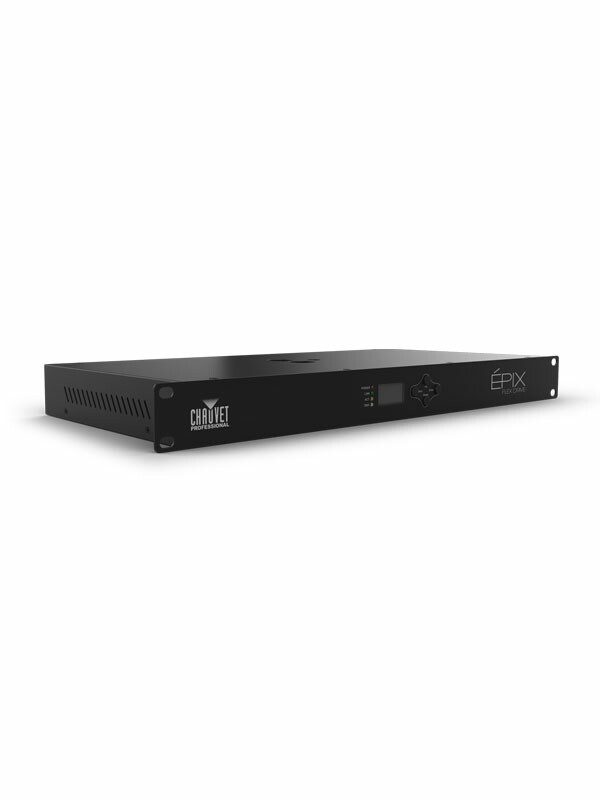

ÉPIX Flex Drive je kontroler za ÉPIX Flex 20 traku s 2 plug-and-play izlaza koji pokreću do 4 ÉPIX Flex 20 traka sa 960 LED dioda. Dodavanjem ÉPIX Flex Boosta svakom izlazu udvostručuje se kapacitet pogona na 1920 LED dioda ili 8 ÉPIX Flex 20 traka, što smanjuje cijenu po linearnoj stopi. Kako bi se olakšala instalacija, ÉPIX Flex Drive omogućuje 22m produžnih kablova između njega i prve ÉPIX Flex 20 trake. Koristite ili kontrolu piksela ili njegovu pojednostavljenu 17/34-kanalnu kontrolu osobnosti kako biste podržali promjenu boja i ugrađene automatske programe. Web server je podržan za udaljenu konfiguraciju i ažuriranja firmvera.

AT A GLANCE

• The processing and power center of the ÉPIX Flex system drives the ÉPIX Flex 20 pixel product
• Versatile control options include DMX, Art-Net and sACN (streaming ACN) to support the touring/rental/installation markets

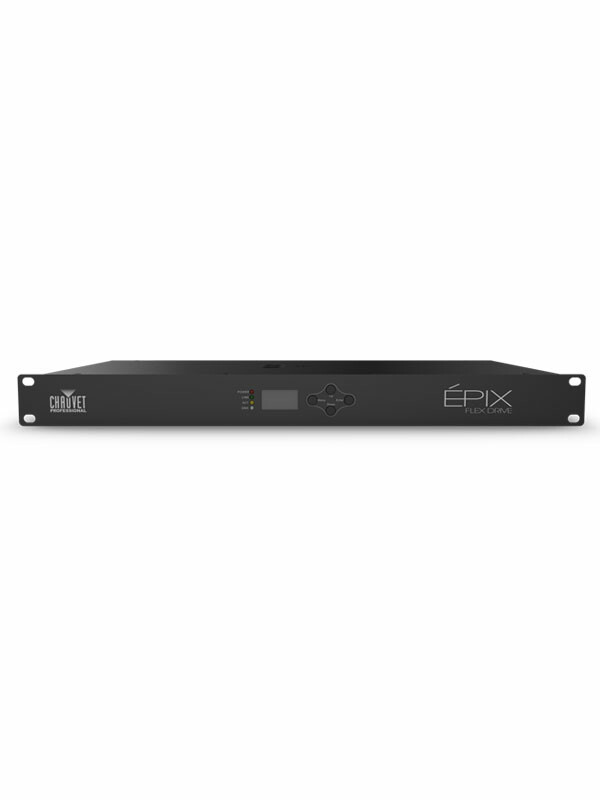

• Quickly and easily configure the ÉPIX Flex Drive using the built-in OLED display and menu
• Easily configure your ÉPIX Flex 20 by assigning the pixel count/output (2 total)
• Supports up to 4 ÉPIX Flex 20 5 meter rolls, or up to 8 with the ÉPIX Flex Boost (sold separately)
• Easily daisy chain fixtures directly from the 2 outputs of the Flex Drive
• Advanced power management design allows you to position the Flex Drive up to 50 ft away from your first Flex 20
• Works with Arkaos Media Master Express for a plug-n-play system that requires almost no training to operate
• Supports RDM over Artnet and full webserver interface for remote configuration and firmware updates
• Multiple control personalities offers flexibility for detailed pixel-level control or simplified plug and play options using the 17/34 channel modes

SPECIFICATIONS

DYNAMIC EFFECTS

• Standalone Color Mixing: Yes
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 19 x 17.52 x 1.7 in (483 x 445 x 44 mm)
• Weight: 6 lb (2.7 kg)
• Exterior Color: Black
• Housing Material: Steel
• Rackmount: 1U

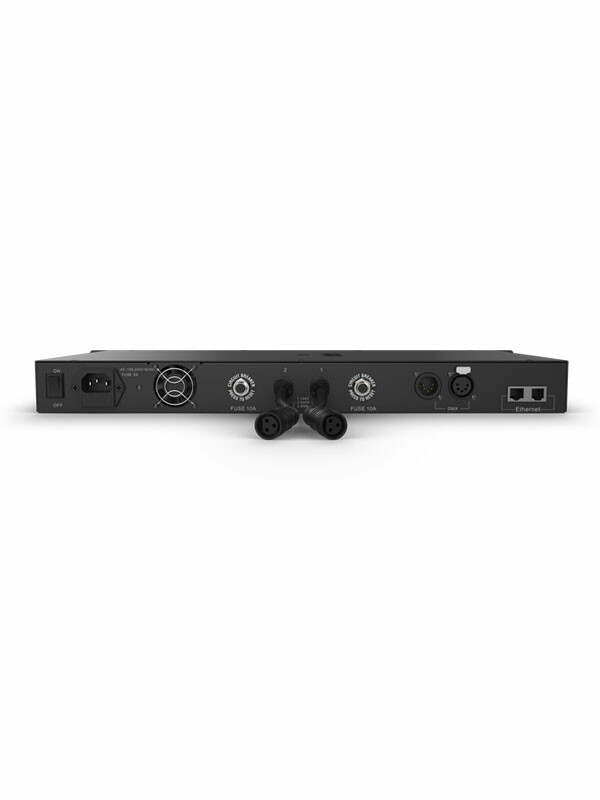

CONNECTIONS

• Power Connection: Edison (local) plug to IEC
• Power Input: IEC
• Cable Length (power): 5 ft (1.5 m)
• Device Data Inputs: Ethernet (RJ45) (2 total) and 5-pin XLR (2 total)
• Device Outputs (3-pin IP65 ports): 2
• Physical Linking per port (without Flex Boost): 2 inline ÉPIX Flex 20
  (with Flex Boost): 4 inline ÉPIX Flex 20
• Total max. cable extension length (without Flex Boost) between ÉPIX Flex Drive and first ÉPIX Flex 20: 75 ft (22.9 m)
  (with Flex Boost) between ÉPIX Flex 20 and ÉPIX Flex 20: 10 ft (3 m)
• Total max. cable extension length between ÉPIX Flex Boost and ÉPIX Flex 20: 30 ft (9.1 m)

CONTROL

• Control Protocol: Art-Net, sACN, DMX
• DMX Channels: 17, 34 or PIXEL
• Art-Net Channels: 17, 34 or PIXEL
• Modes/Personalities: 3 personalities (17ch, 34ch, PIXEL)
• Maximum Supported LEDs (per port): 960
• Maximum Supported LEDs (total): 1920

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 326 W, 2.75 A @ 120 V, 60 Hz
  314 W, 1.64 A @ 208 V, 60 Hz
  312 W, 1.50 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET
• IP Rating: IP20, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
• MET Listing Number: E114016-1144
• US Safety: UL 8750
• Canadian Safety: CSA C22.2 No. 250.13-12

WHAT'S INCLUDED

• ÉPIX Flex Drive
• IEC power cord

OPTIONAL ACCESSORIES

• ArKaos Media Master Express + KN software
