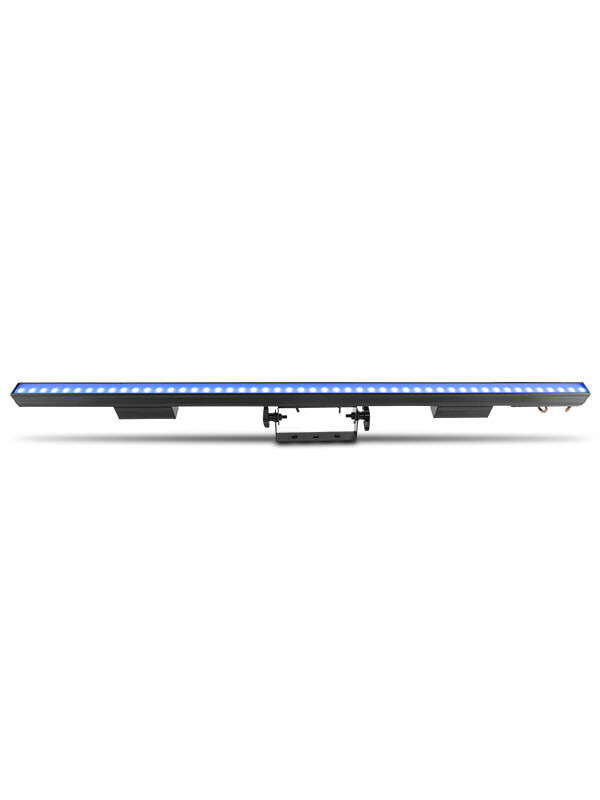

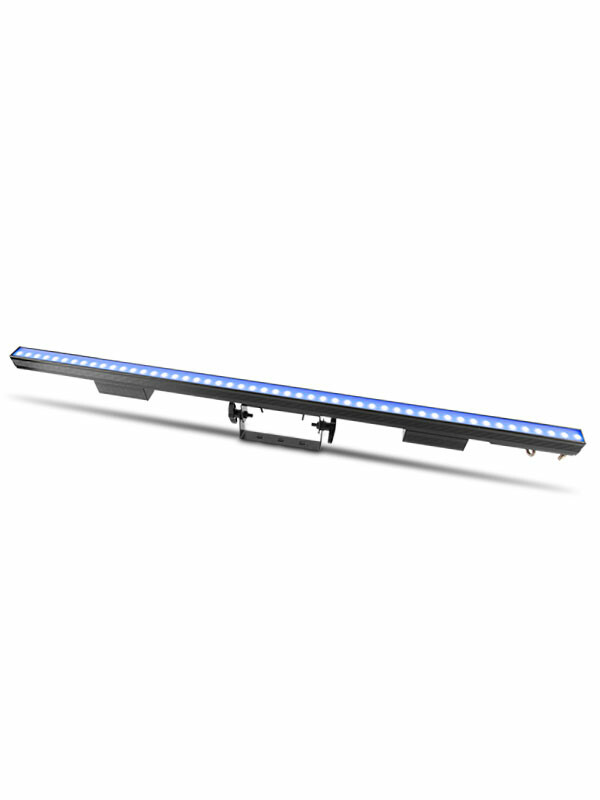

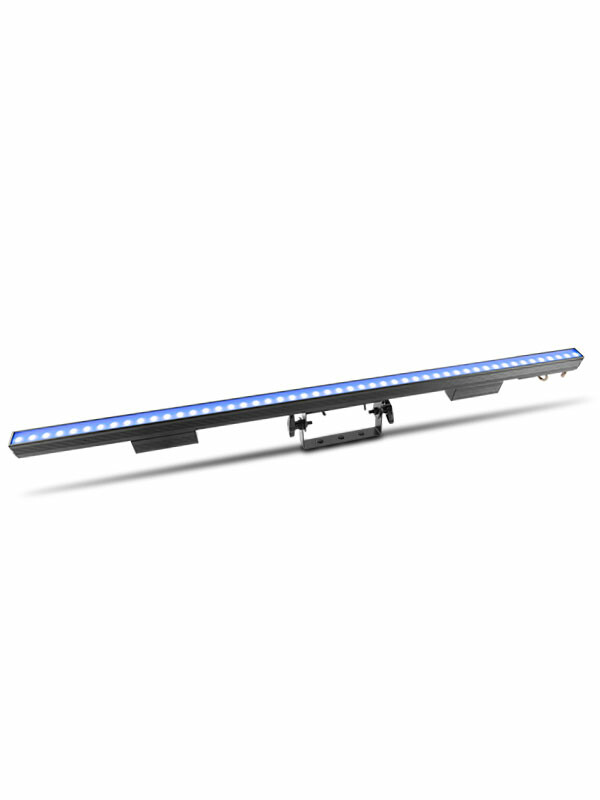

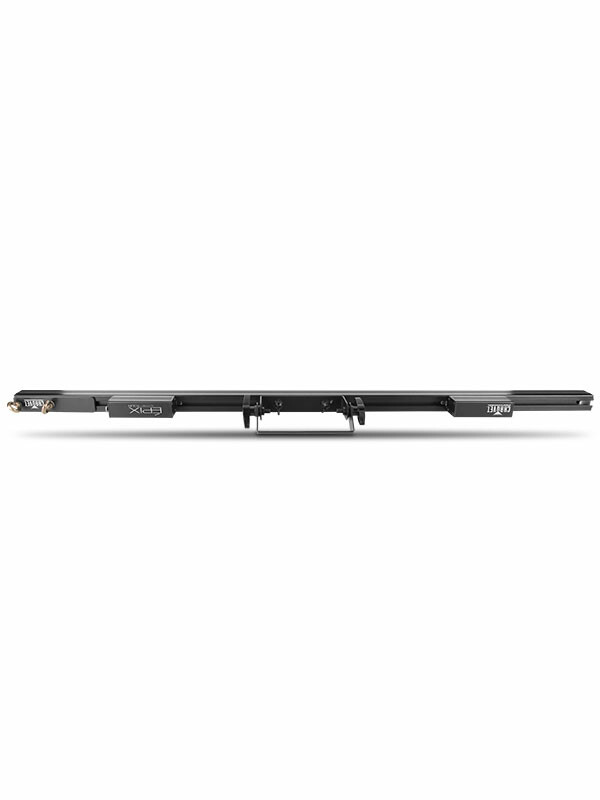

ÉPIX Strip Tour je linerano rasvjetno tijelo dužine 1m sa pixel-mapping efektom za prikazivanje videa i/ili pokretne grafike, sa 50 LED dioda u nizu i kutom gledanja od 125º. Napajanje i upravljanje putem ÉPIX Drive 900 na Art-Net, Kling-Net ili saACN (streaming ACN). Uključuje i black stealth filtar (instaliran) za visoki kontrast i white frosted filtar (uključen) za visoki output.
VIDEO
SPECIFICATIONS
OPTICAL
Light Source: 50 LEDs (tri-color RGB) SMD 5050, 50,000 hours life expectancy
Viewing Angle: 125°
Illuminance - white frost filter (included): 1,094 NITS
Illuminance - black stealth filter (installed): 267 NITS
Pixels: 50 x 1
Pixel Pitch: 20 mm
Refresh Rate: 4,700 Hz
CONSTRUCTION / PHYSICAL
Dimensions: 39.37 x 4.72 x 1.18 in (1000 x 120 x 30 mm)
Weight: 3.44 lb (1.56 kg)
Exterior Color: Black
Housing Material: Aluminum
CONNECTIONS
Data Connectors: 4-pin XLR
Physical Linking: 18 inline ÉPIX Strip Tour
Minimum required device linking cable size: 4 conductor (2 x 18 AWG, 2 x 20 AWG)
Total max. cable length (shielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 210 ft (64 m)
Max. cable length (shielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 65 ft (20 m)
Max. cable length (shielded cables) between ÉPIX Tour fixtures: 60 ft (18 m)
Total max. cable length (unshielded cables) between ÉPIX Drive 900 and last ÉPIX Tour fixture: 300 ft (91 m)
Max. cable length (unshielded cables) between ÉPIX Drive 900 and first ÉPIX Tour fixture: 150 ft (45 m)
Max. cable length (unshielded cables) between ÉPIX Tour fixtures: 100 ft (30 m)
CONTROL
Control Protocol: Art-Net, Kling-Net, sACN
Control Channels: 150
ELECTRICAL
Power and Current: 17 W, 0.14 A @ 120 V, 60 Hz
Power and Current: 17 W, 0.08 A @ 208 V, 60 Hz
Power and Current: 17 W, 0.07 A @ 230 V, 50 Hz
CABLE
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
ÉPIX Strip Tour
White Frost Filter
REQUIRED ACCESSORIES
OPTIONAL ACCESSORIES
