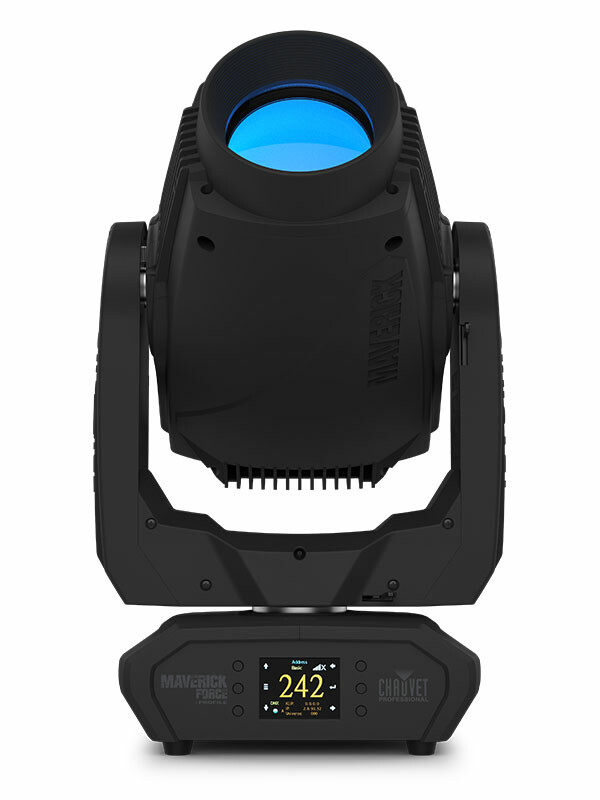

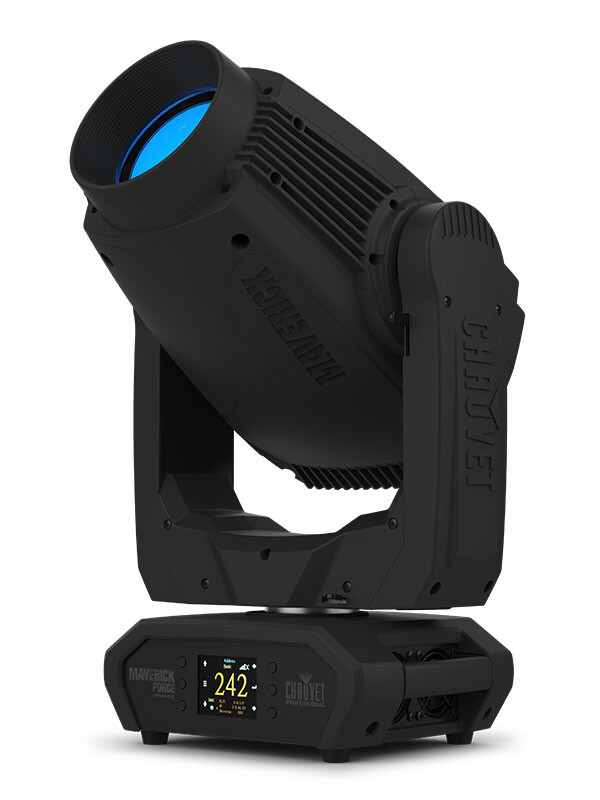

Chauvet Professional Maverick Force S Profile

Potpuno opremljen, kompaktan i lagan 350 W LED yoke profilni moving head koji sadrži: CMY color mixing, color wheel, zoom optics, framing shutters with rotation, two gobo wheels (one rotating, one static)

Maverick Force S Profile is ideal for small to medium multi-faceted projects in need of seamless color-mixing, advanced optics, framing shutters, and control options in a lightweight frame. Just over 50 lbs, this compact unit features a smart optical system that maximizes the output of 14,000 lumens and provides high-quality color mixing with a CTB filter. An 8-slot color wheel is also added with split-color combinations in mind. Maverick Force S Profile includes a custom framing system equipped with dual axis movement and a 120° complete module rotation for fast beam shaping. A speedy effects artillery includes motorized iris, frost, focus, a 5-facet prism and wide zoom ranging from 4.5° to 41.6°. Additionally, custom gobos created in collaboration with leading designers can be stacked on top of one another for dynamic effects. That is a lot packed in a small frame standing just over 2 ft tall. Control as you see fit with DMX, sACN, Art-Net or W-DMX.

Fully featured, compact and lightweight 350 W LED yoke profile fixture including CMY color mixing, a color wheel, zoom optics, framing shutters with rotation, and two gobo wheels, one rotating, and one static
16-bit dimming of master dimmer for smooth control of fades
Variable CMY color mixing system to create a wide pallet of colors
DMX, WDMX, sACN, and Art-Net for full flexibility of control options
RDM Enabled for remote addressing and trouble shooting
4.5° to 41.6° zoom range for variable beam sizes
Iris, 5-facet prism, and frost for beam control
4 blade framing shutters with dual axis movement, full wipe, and 120 degree total module rotation
True 1 compatible power input
Three setup menu presets and preset sync for cross loading to multiple like fixtures for easy shop setup
USB slot for software uploads
Battery backup display with auto-rotate depending on fixture orientation

SPECIFICATIONS

OPTICAL

Light Source: 1 LED (CW) 350 W, (2.7 A), 8400K, 50,000 hours life expectancy
Color Temperature (at full): 6937K
CRI: 69
CRI with CRI filter: 89.6
Front Lens Dia: 119 mm
Beam Angle: 4.5° to 35.9°
Field Angle: 5.2° to 40.5°
Zoom Angle: 5.8° to 41.6°
Lumens - Source: 20,000
Lumens – Output: 14,669
Illuminance (4.5°) 51,865 lux @ 5 m
Illuminance (41.6°) 1,648 lux @ 5 m
Selectable PWM: 600 Hz, 1200 Hz, 4000 Hz, 6000 Hz, 15000 Hz

DYNAMIC EFFECTS

Pan and Tilt: 540°/270°
Pan and Tilt Ranges: 540°, 360°, 180° pan/270°, 180°, 90° tilt
Colors: 7 + white, split colors, continuous scroll at variable speeds
Colors: CMY Wheels
Gobos (1): 7 + open (glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
Gobos (2): 9 + open (metal), continuous scroll at variable speeds
Gobo Size (1): Gobo Wheel 1 (rotating): 25.5 mm (outside), 17 mm (image), 1.1 mm (max. thickness)
Framing Shutters: 4 blades, each with dual axis movement.
Framing Shutter rotation: 120°
Dimmer: Electronic
Shutter/Strobe: Electronic
Zoom: Motorized
Focus: Motorized
Frost: Motorized
Iris: Motorized
Prism: 5 Facets, motorized, rotating
Strobe Rate: 0 to 20 Hz
Move-in-Black: Yes
Dim Curves: 4

CONSTRUCTION / PHYSICAL

Dimensions: 15.5 x 9.8 x 25.0 in (361 x 238 x 639 mm)
Weight: 52.9 lb (24 kg)
Exterior Color: Black
Housing Material: High-impact flame-retardant polymer

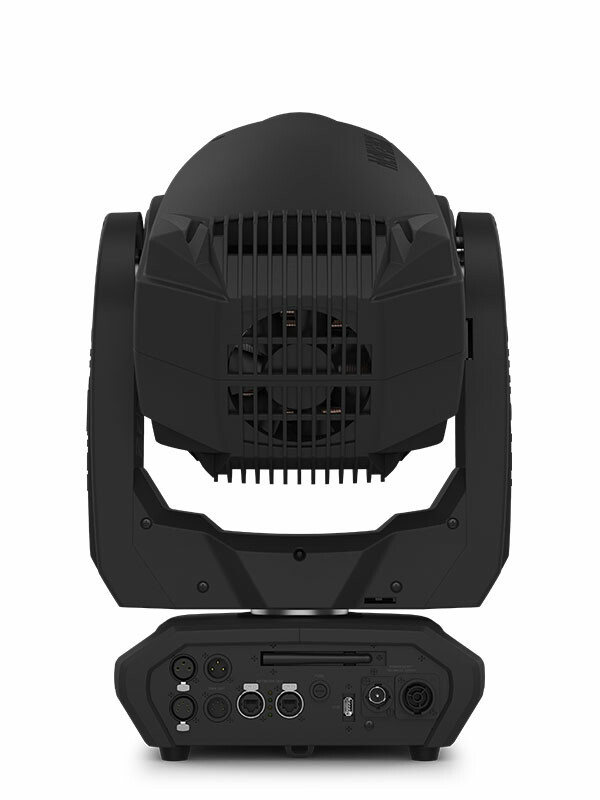

CONNECTIONS

Power Connection: Edison plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Data Connectors: 3-pin and 5-pin XLR, Amphenol XLR Net RJ45 Connectors in/out
Cable Length (power): 5 ft (1.5 m)

CONTROL

Control Protocol: Art-Net, sACN, DMX, RDM, W-DMX
DMX Channels: 31 or 47
Art-Net Channels: 31 or 47
Modes/Personalities: 2 personalities (31, 47)

ELECTRICAL

Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 2 units @ 100 V; 2 units @ 120 V; 5 units @ 208 V; 4 units @ 230 V; 5 units @ 240 V
Power and Current: 580 W, 5.82 A @ 100 V, 60 Hz [9.0 A in-rush]
Power and Current: 563 W, 4.75 A @ 120 V, 60 Hz [8.0 A in-rush]
Power and Current: 547 W, 2.69 A @ 208 V, 60 Hz [15.0 A in-rush]
Power and Current: 546 W, 2.44 A @ 230 V, 50 Hz [17.0 A in-rush]
Power and Current: 543 W, 2.33 A @ 240 V, 50 Hz [16.0 A in-rush]
Power and Current (resting): 86 W, 0.929 A @ 100 V, 60 Hz
Power and Current (resting): 85 W, 0.757 A @ 120 V, 60 Hz
Power and Current (resting): 82 W, 0.449 A @ 208 V, 60 Hz
Power and Current (resting): 81 W, 0.412 A @ 230 V, 50 Hz
Power and Current (resting): 79 W, 0.404 A @ 240 V, 50 Hz
