Includes: Medium, and Wide Lenses, powerCON Power Cord,
Control: 3-pin DMX, 5-pin DMX

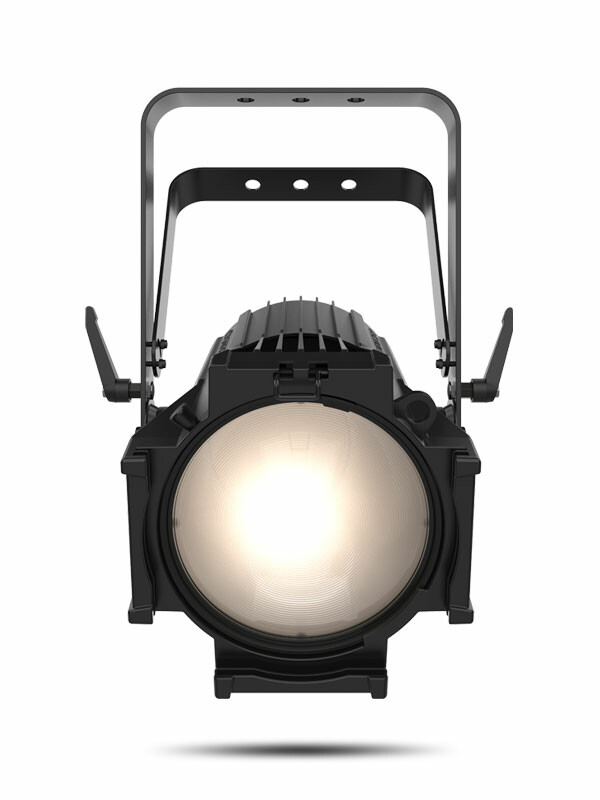

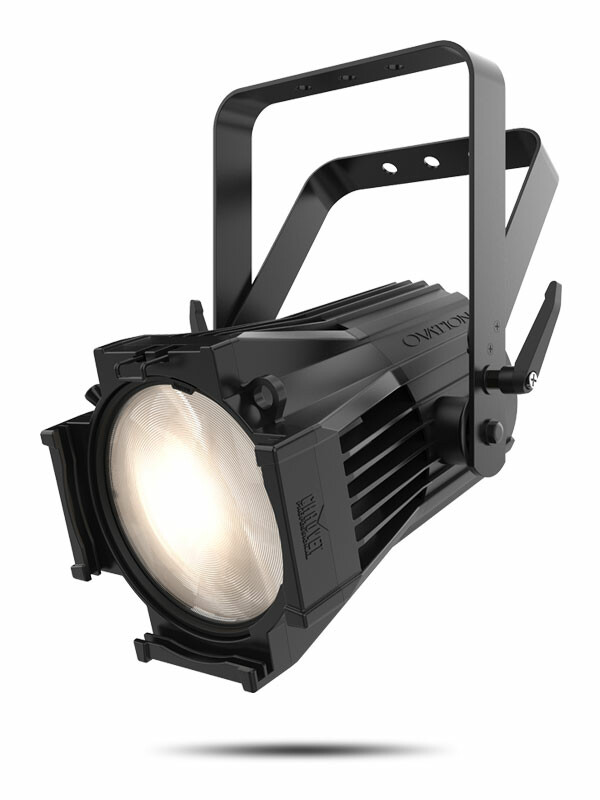

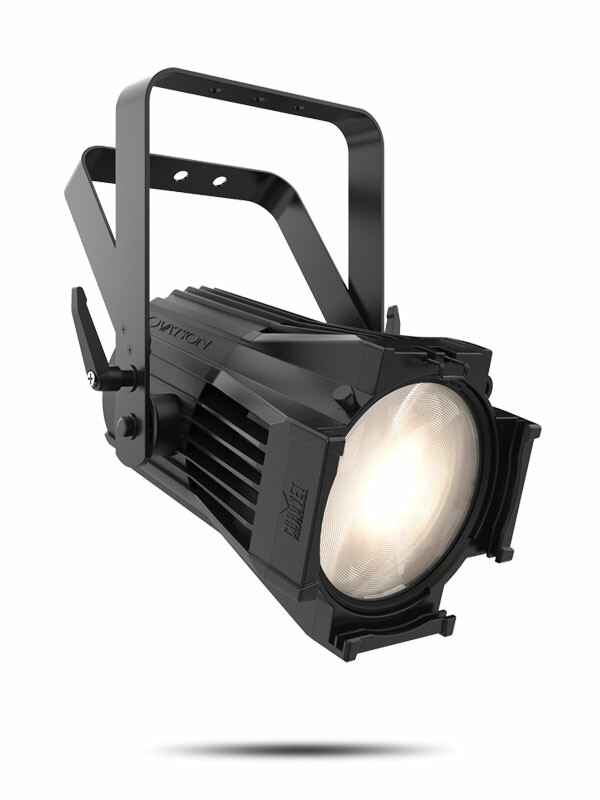

Ovation P-56VW is a compact, bright, and virtually silent par that produces a homogenized, flat and even field of light from an advanced, single source LED. The unit features the same 6-color LED system found in the Ovation E-930VW ellipsoidal to produce nearly any temperature of white with high CRI and CQS. The par’s Color Temperature can be even further adjusted for +/- green, making it ideal for TV studios and broadcasted events. Interchangeable lens plates are included for medium and wide beam angles and the unit accepts standard 7.5” beam shaping accessories. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease.
AT A GLANCE
Variable white PAR-style fixture with homogenized single source of light
Interchangeable lens plates included for medium and wide beam angles
Soft, even field of light
Quiet operation for use in any situation with fan speed control
+/- Green adjustment via DMX or on-board control
Independent color control over the 6-color engine when a splash of color is needed
RDM and variable Pulse Width Modulation for setup ease
Accepts standard 7.5” beam shaping accessories
16-bit dimming resolution for smooth fades
SPECIFICATIONS
OPTICAL
Light Source: 48 LEDs (6 red, 6 green, 10 blue, 4 R. blue, 6 orange, 16 lime) 3 to 4 W, (1 A), 50,000 hours life expectancy
Color Temperature (range): 2800 to 8000 K
CRI: 92-93
Beam Angle (Medium lens): 21°
Beam Angle (Wide lens): 54°
Beam Angle (Wide lens w/ egg crate): 40°
Field Angle (Medium lens): 35°
Field Angle (Wide lens): 84°
Field Angle (Wide lens w/ egg crate): 66°
Lumens (Medium Lens): 3,967
Lumens (Wide Lens): 4,476
Illuminance (Medium Lens): 1220 lux @ 5 m
Illuminance (Wide Lens): 220 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4000 Hz, 6,000 Hz, 25000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Standalone Color Mixing: Yes
Color Temperature Presets: Yes
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 12 lb (5.5 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

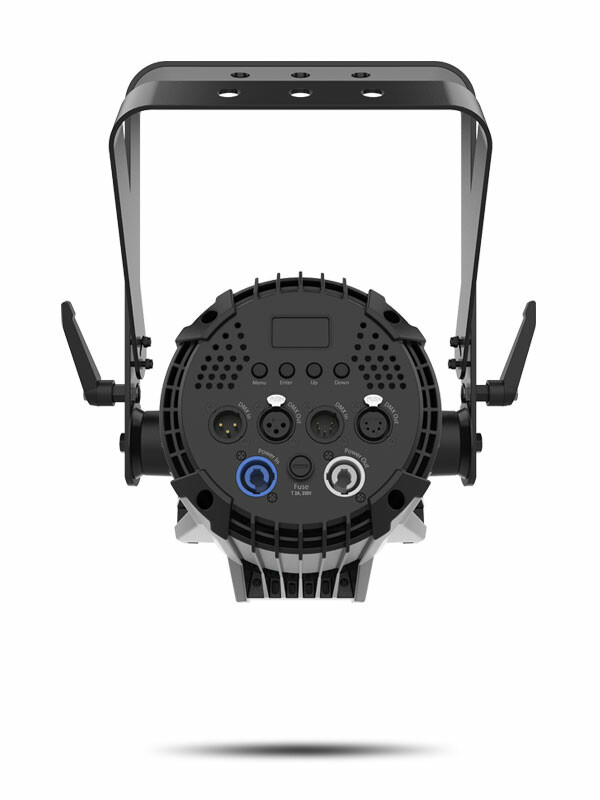

CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 3, 5, 6, 8, 11, 15 or 17
Modes/Personalities: 7 personalities (3, 5, 6, 8, 11, 15, 17)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V
Power and Current: 175 W, 1.505 A @ 120 V, 60 Hz
Power and Current: 166 W, 0.879 A @ 208 V, 60 Hz
Power and Current: 165 W, 0.801 A @ 230 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Ovation P-56VW
Neutrik powerCON power cord
Gel frame holder (7.5 in/191 mm accessories)
Wide and Medium Lenses
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5” Barn door
Ovation 60 deg, 7.5” Honeycomb
ORDERING INFO
Item Code: 03031501
DOWNLOADS
Ovation P-56VW Quick Reference Guide
Ovation P-56VW Quick Reference Guide- Legacy Software
Ovation P-56VW Photometric Report
Ovation P-56VW DMX Chart- Legacy Software
Ovation P-56VW Specification Sheet
Download ChamSys Personalities File
