Includes: Narrow, Medium, and Wide Lenses, powerCON Power Cord,
Control: 3-pin DMX, 5-pin DMX

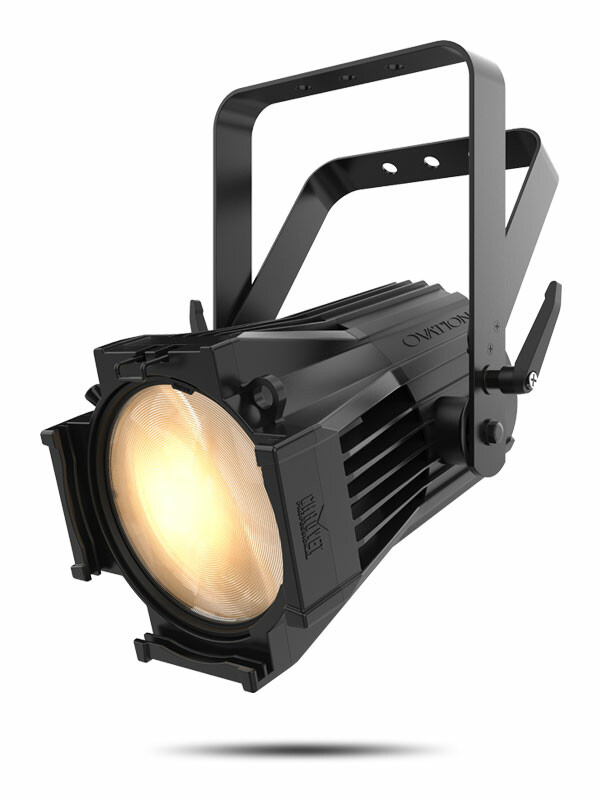

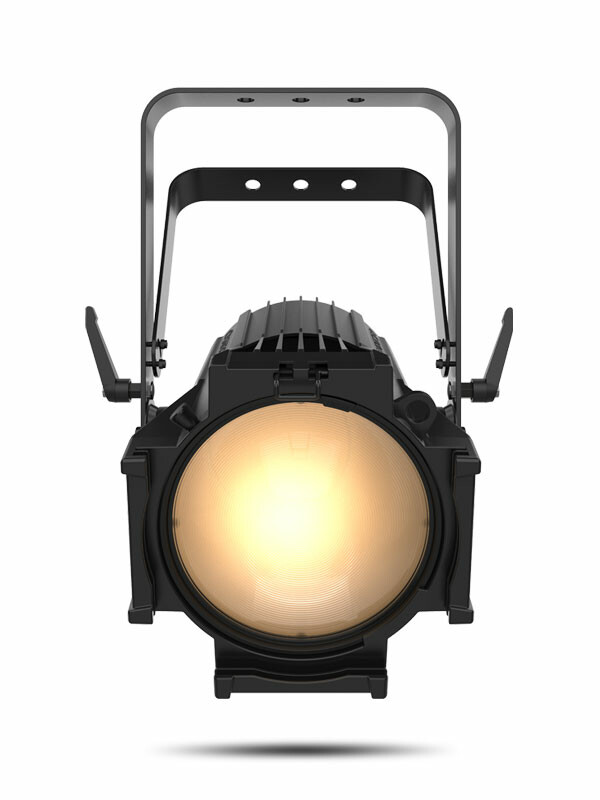

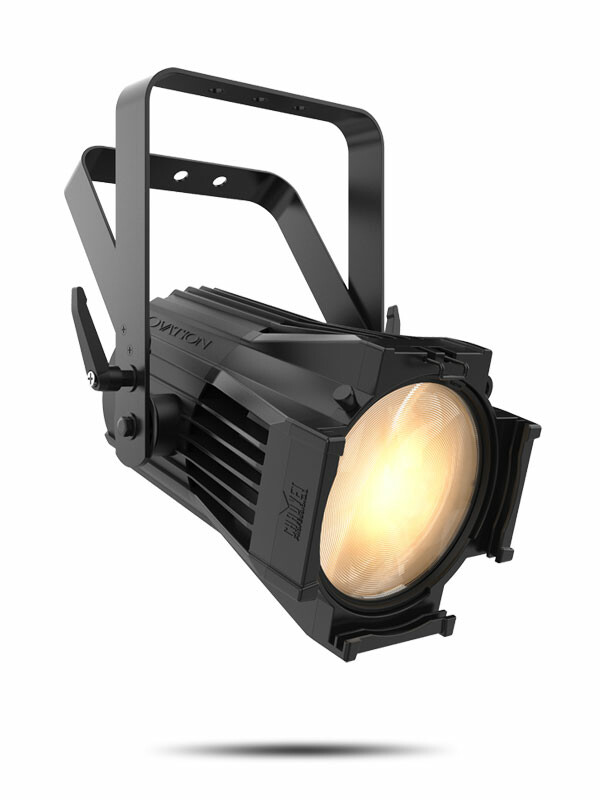

Ovation P-56WW is a bright, compact, and virtually silent par with exceptionally high CRI that is ideal for theatrical and studio applications. The sleek, modern-style par produces a homogenized, single-source, flat and even field of light with the same efficient warm white LED system found in the award-winning Ovation E-260WW ellipsoidal. Interchangeable lens plates are included for narrow, medium and wide beam angles. The virtually silent par also features extremely smooth 16-bit dimming, as well as RDM and PWM for set-up ease. The unit accepts standard 7.5” beam shaping accessories.
AT A GLANCE
Warm white PAR style fixture with output comparable to a 1,000 W PAR 64 lamp
16-bit dimming resolution for smooth fades
Compact design with homogenous single source of light
Flat, even field of light
Quiet operation for use in any situation
Interchange lens plates included for narrow, medium and wide beam angles
SPECIFICATIONS
OPTICAL
Light Source: 1 LEDs (WW) 230 W, (3.2 A), 3228 K, 50,000 hours life expectancy
Color Temperature (at full): 3228 K
CRI: 97.9
Beam Angle (Narrow lens): 11.8°
Beam Angle (Medium lens): 23.9°
Beam Angle (Wide lens): 70.9°
Beam Angle (Wide lens w/ egg crate) : 37°
Field Angle (Narrow lens): 26.6°
Field Angle (Medium lens): 40°
Field Angle (Wide lens): 106°
Field Angle (Wide lens w/egg crate): 68°
Lumens (w/Narrow lens): 10,326
Lumens (w/Medium lens): 10,728
Lumens (w/Wide lens): 10,687
Illuminance (w/Narrow Lens): 5,468 lux @ 5 m
Illuminance (w/Medium Lens): 2,264 lux @ 5 m
Illuminance (w/Wide Lens): 363 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Shutter/Strobe: Electronic
Strobe Rate: 0 to 29 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 12.48 x 12.83 x 14 in (317 x 326 x 363 mm)
Weight: 11.6 lb (5.3 kg)
Exterior Color: Black
Accessory Holder/Gel Frame Size: 7.5 in (191 mm)
CONNECTIONS
Power Connection: Edison (Local) plug to Neutrik powerCON
Data Connectors: 3- and 5-pin XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3 or 6
Modes/Personalities: 4 personalities (1, 2, 3, 6)
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 5 units @ 100 V; 7 units @ 120 V; 13 units @ 208 V; 14 units @ 230 V; 15 units @ 240 V
Power and Current: 210 W, 2.278 A @ 100 V, 60 Hz
Power and Current: 205 W, 1.806 A @ 120 V, 60 Hz
Power and Current: 197 W, 1.023 A @ 208 V, 60 Hz
Power and Current: 195 W, 0.916 A @ 230 V, 50 Hz
Power and Current: 194 W, 0.886 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET, FCC
IP Rating: IP20, dry location
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Ovation P-56WW
Neutrik powerCON power cord
Gel Frame holder (7.5 in/191 mm accessories)
Wide, medium and narrow lenses
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Neutrik® powerCON® cables
3-pin or 5-pin DMX Cables
Color Blending Filters: DF60X1D, DF20D
Ovation F 7.5″ Barndoor
Ovation 60deg, 7.5” Honeycomb
ORDERING INFO
Item Code: 03031475
DOWNLOADS
Ovation P-56WW Quick Reference Guide
Ovation P-56WW Quick Reference Guide- Legacy Software
Ovation P-56WW Photometrics Report
Ovation P-56WW DMX Chart- Legacy Software
Ovation P-56WW Specification Sheet
Download ChamSys Personalities File
