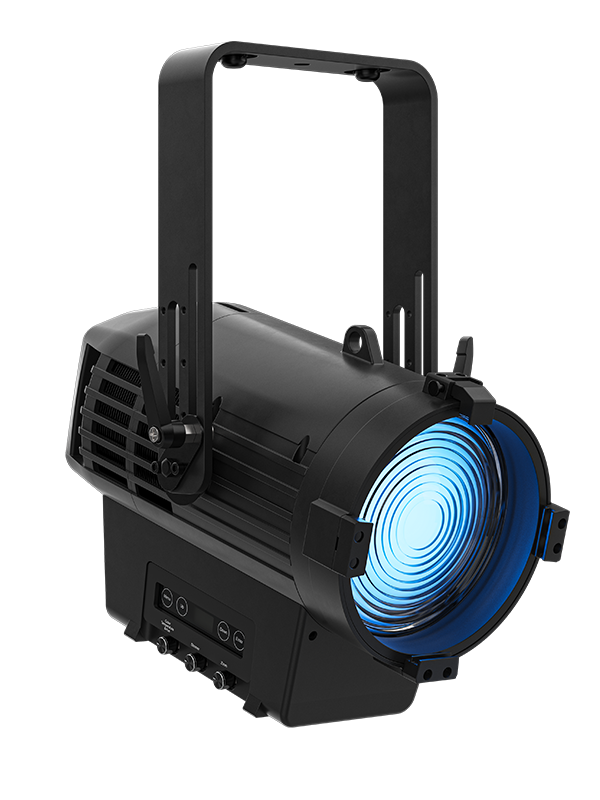

Ovation Rêve F-3 IP is an outdoor-rated motorized fresnel incorporating our full spectrum (RGBAM) Rêve light engine. With easy on-board control dials and quiet operation, Rêve F-3 IP represents a welcome solution for applications and markets in need of soft controllable washes. Ready to go anywhere, rain or shine, its innovative adjustable yoke also allows it to be mounted anywhere, even in low clearance areas. Featuring an optical system designed to answer the call for longer throws with an extended zoom range that can narrow from 60 degrees all the way down to 10 degrees in order to achieve impressive reach. A versatile lighting instrument at home in theaters, houses of worship, on TV and Film sets, as well as the rental and production world. Flawlessly smooth dimming, +/- green adjustment, linear CCT and adjustable Pulse Width Modulation ensure performance that looks as good on camera as it does live.

Full-spectrum LED fresnel lighting fixture for theatre, film and production

Fully IP65 rated for seasonal use indoors or out

Addition on-board control for multiple parameters via 3 control dials

Linear color temperature presets from 2800 K to 8000 K with high CRI and CQS

Virtual color wheel with color matched to popular gel colors

+/- Green adjustment and emulated red-shift via DMX or on-board control

RDM (Remote Device Management) for added flexibility

Adjustable PWM (Pulse Width Modulation) to avoid flickering on camera

Virtually silent operation for use in studio, film and theatre applications

Ultra-smooth 16-bit dimming curves and speeds to complement any lighting scheme.

Innovative adjustable yoke for mounting in low clearance areas

USB Port for Software updates

SPECIFICATIONS

OPTICAL

• Light Source: 126 LEDs (22 red, 14 green, 16 blue, 6 royal blue, 28 amber, 40 mint) 5.8 to 7.5 W, (1.95 A) 50,000 hours life expectancy.
• Color Temperature (range): 2800 to 8000 K
• Color Temperature (at full): 5864 K
• Front lens diameters: 210.8 mm
• CRI: 96
• Beam Angle: 10.6° to 68.2°
• Field Angle: 18.3° to 90.4°
• Cutoff Angle: 25.3° to 99.5°
• Zoom Range: 10.6° to 99.5°
• Lumens (narrow) : 5232lm
• Lumens (wide) : 13374lm
• Illuminance (narrow) : 4869lux @ 5 m
• Illuminance (wide) : 482 lux @ 5 m
• Illuminance (50%) : 1587 lux @ 5 m
• Selectable PWM: 750 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 25,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Modes: 4
• Dim Curves: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 16.02 x 13.47 x 20 in (406.9 x 342 x 508 mm)
• Weight (Standard Yoke): 30.4 lb (13.8 kg)
• Weight (Pole Yoke): 34.0 lb (15.5 kg)
• Exterior Color: Black
• Housing Material: Aluminum alloy
• Accessory Holder/Gel Frame Size: 7.5 in (191 mm)

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
• Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV
• Modes/Personalities: 8 personalities (1, 5, 6, 8, 12, 14ch1, 14ch2, 18 or HSV)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 2 units @ 120 V; 4 units @ 208 V; 5 units @ 230 V
• Power and Current: 532 W, 4.46 A @ 120 V, 60
• Power and Current: 519 W, 2.56 A @ 208 V, 60 Hz
• Power and Current: 526 W, 2.24 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP65, dry location
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• Ovation Reve F-3 IP
• Seetronic Powerkon power cord
• Gel frame holder (7.5 in/191 mm accessories)
• (1) 140mm Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• TRUE1 Style Power Extension Cables
• 5-pin IP65 DMX Cables
• RDM2go
• USB Jump Drive
