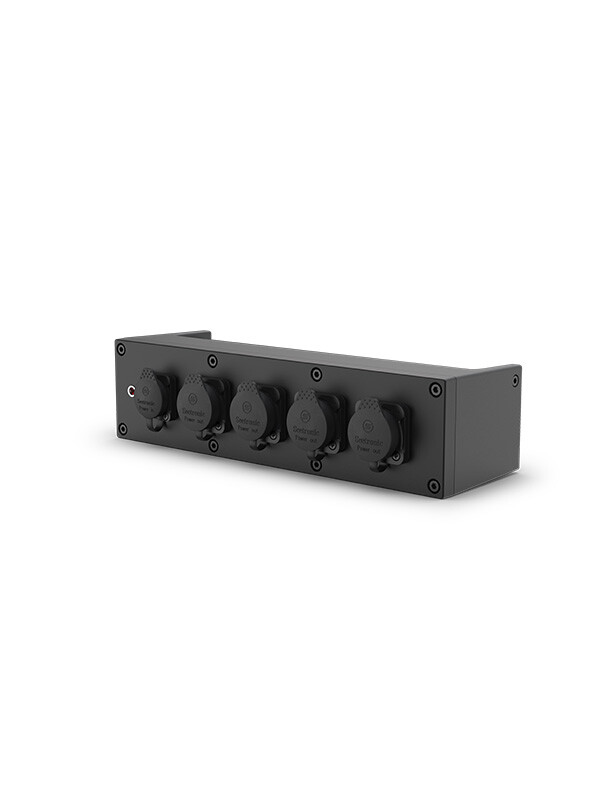

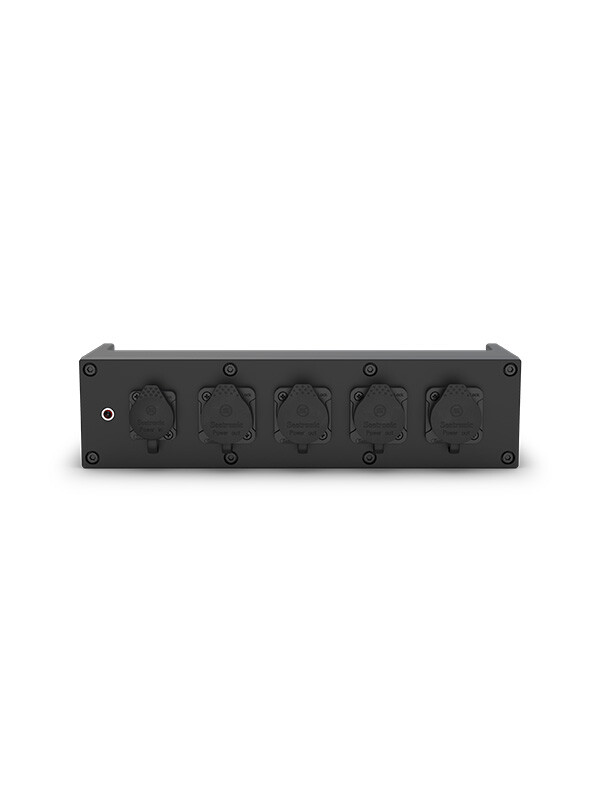

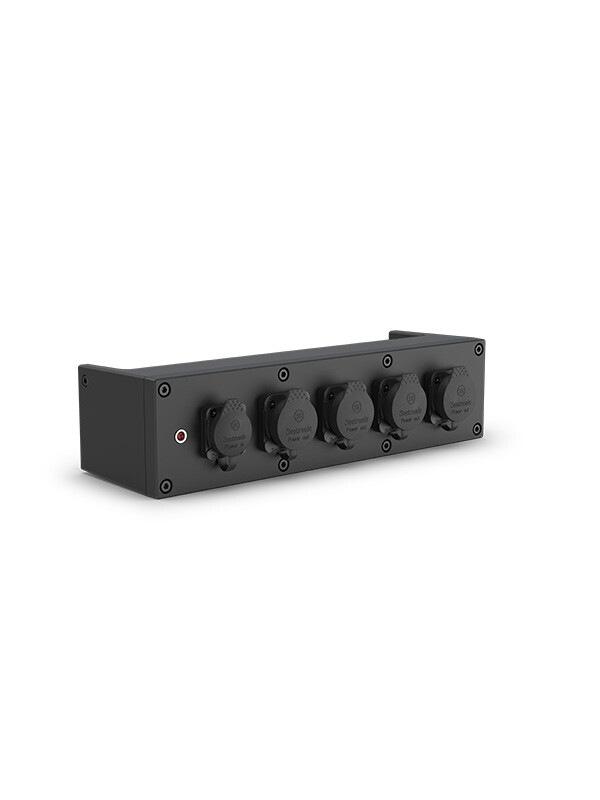

PowerStream 4 IP is an ingenious, IP65 rated splitter utilizing Seetronic PowerKon IP65 connectors. Placed in-line, it taps into up to four connections out to fixtures, allowing users to pre-rig a truss and limit the need for additional cables. Designed with production rental houses in-mind, PowerStream 4 IP is compact, rugged, and comes with multiple rigging options for hanging in your rig.
AT A GLANCE
IP65 Rated power distribution box with (1) input and (4) outputs
Seetronic PowerKon IP65 connectors
M12 threaded insert for easy clamp mounting
Built in rail for easy strapping safety cable attachment
Compact form factor for easy rigging
SPECIFICATIONS
CONSTRUCTION / PHYSICAL
Dimensions: 10.81 x 3.0 x 2.68 in (274.5 x 76.2 x 68.0 mm)
Weight: 3.0 lb (1.36 kg)
Exterior Color: Black
Housing Material: Aluminum alloy, Aluminum die-cast
CONNECTIONS
Power Input: TRUE1 style Compatible Seetronic PowerKon IP65
Power Output: TRUE1 style Compatible Seetronic PowerKon IP65
Power Output: (Quantity) 4 power through
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
16A max pass through
CERTIFICATIONS / QUALIFICATIONS
CE, UKCA
IP Rating: IP65, temporary outdoor/wet use
WHAT'S INCLUDED
Power Stream 4 IP
OPTIONAL ACCESSORIES
IP65 rated Seetronic PowerKon cables
Safety cables
Clamps with M12 threaded bolts
DOWNLOADS
Powerstream 4 IP - Quick Reference Guide
Download ChamSys Personalities File
