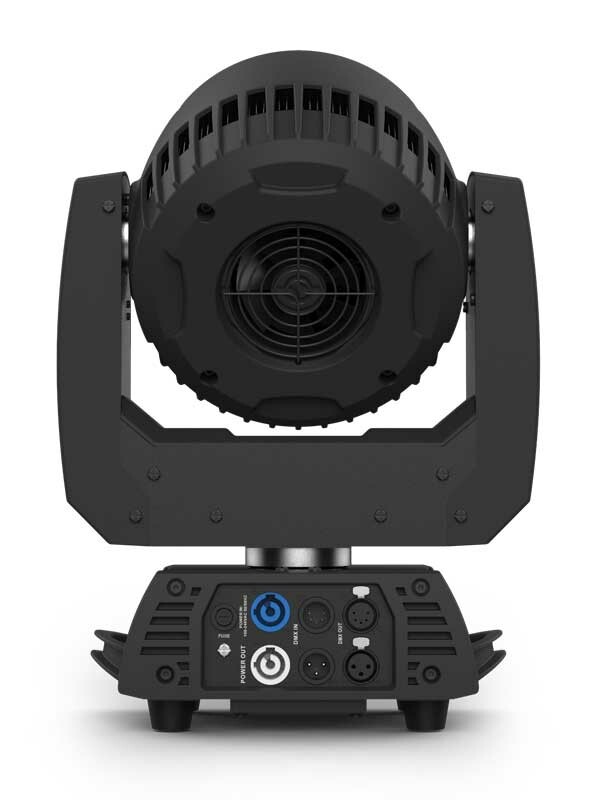

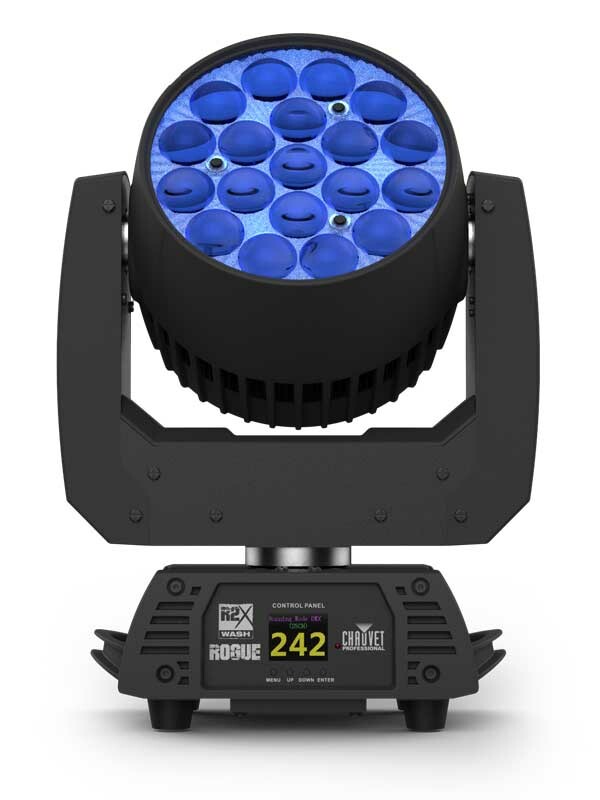

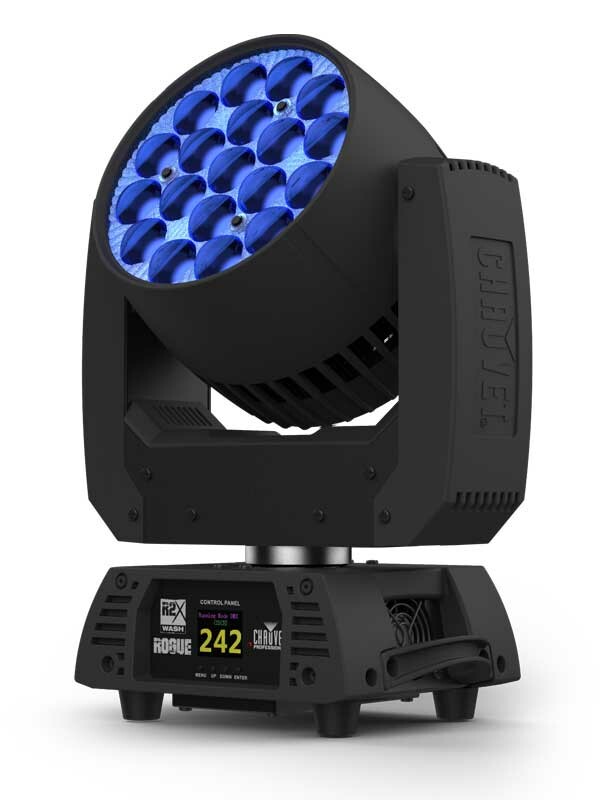

Rogue R2X Wash je izdržljiv i pouzdan moving head wash reflektor koji proizvodi snažno osvjetljenje i ima 5 zona kontrole za pixel-mapping 19 x 25 W RGBW LED dioda. Izvanredan raspon zumiranja od 7,3° do 64,3° daje mu pokrivanje i najvećih prostora. Glatko miješanje boja, jednostavni i složeni profili DMX kanala i powerCON ulaz i izlaz samo su neke od ostalih značajki koje čine ovaj uređaj izvanrednim izvođačem u bilo kojem okruženju.

AT A GLANCE

• Fully featured RGBW LED yoke wash fixture with LED zone control and zoom
• 16-bit dimming of master dimmer as well as individual colors for smooth control of fades
• 19 RGBW LEDs, 25 W each
• 3- and 5-pin DMX input/output connections
• 5 zones of LED control for pixel mapping control
• Unique lens design for excellent color blending
• Fast, smooth pan and tilt movement
• RDM enabled for remote addressing and trouble shooting
• Selectable LED maximum output to match legacy Rogue R2 Washes
• Selectable PWM options for camera operation
• 6 distinct dimming modes for advanced control
• Omega mounting bracket, fits all Rogue and Maverick fixtures
• Easy to read OLED display with simple, effective menu options
• Simple and complex DMX channel profiles for programming versatility

SPECIFICATIONS

OPTICAL

• Light Source: 19 LEDs (quad-color RGBW) 25 W, (1.5 A), 50,000 hours life expectancy
• Color Temperature (range): 2800 to 10000 K
• Beam Angle: 7.3° to 35.2°
• Field Angle: 11.2° to 51.2°
• Cutoff Angle: 17.6° to 64.3°
• Zoom Range: 7.3° to 64.3°
• Lumens – Source: 10,300
• Lumens – Output: 6,418
• Illuminance (11.2°): 8,149 lux @ 5 m
• Illuminance (51.2°): 726 lux @ 5 m
• Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 6,000 Hz, 15,000 Hz

DYNAMIC EFFECTS

• Pan and Tilt: 540°/230°
• Pan and Tilt Ranges: 180°, 360°, 540° pan/90°, 180°, 230° tilt
• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Zoom: Motorized
• Strobe Rate: 0 to 20 Hz
• Standalone Color Mixing: Yes
• Color Temperature Presets: Yes
• Dim Curves: 4
• Built-in Automated Programs: Yes
• Customizable Programs: No
• Recall Custom Programs: No

CONSTRUCTION / PHYSICAL

• Dimensions: 8.58 x 12.05 x 15.67 in (218 x 306 x 398 mm)
• Weight: 22.8 lb (10.3 kg)
• Exterior Color: Black
• Housing Material: High-impact flame-retardant polymer

CONNECTIONS

• Power Connection: Edison (Local) plug to Neutrik® powerCON®
• Power Input: Neutrik® powerCON®
• Power Output: Neutrik® powerCON®
• Data Connectors: 3- and 5-pin XLR
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 15, 17, 22, 33, 54, or 56
• Modes/Personalities: 8 personalities (15CH, 17CH, 22CH, 33CH, 33CH MS, 54CH, 54CH MS or 56CH)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 8 units @ 208 V; 9 units @ 230 V
• Power and Current: 342 W, 2.85 A @ 120 V, 60 Hz
• Power and Current: 338 W, 1.631 A @ 208 V, 60 Hz
• Power and Current: 344 W, 1.488 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• CE, MET, FCC
• IP Rating: IP20, dry location

WHAT'S INCLUDED

• Rogue R2X Wash
• Neutrik® powerCON® power cord
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-07
• Neutrik® powerCON® cables
• DMX Cables
• Flight Case:CP6CASER2W
• UPLOAD 08
