Includes: IP PowerKon Power Cord, Omega Bracket
Control: 3-pin DMX, 5-pin DMX

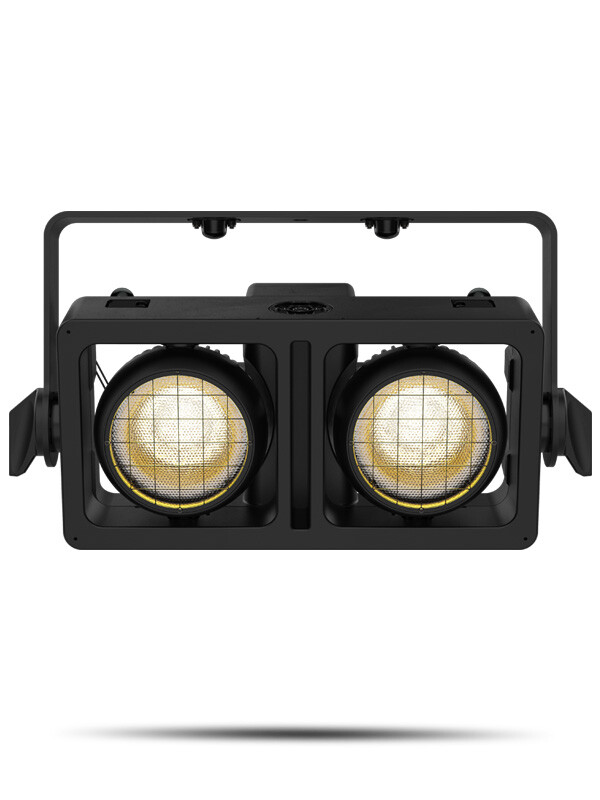

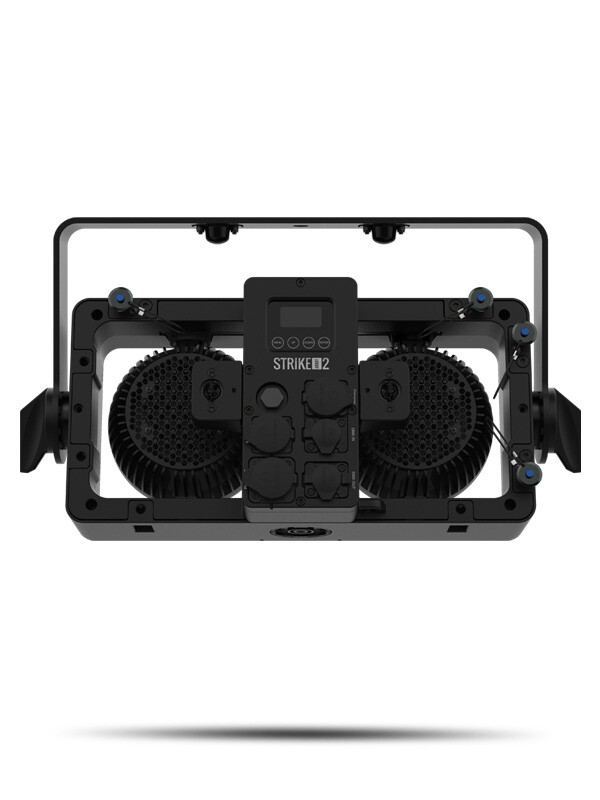

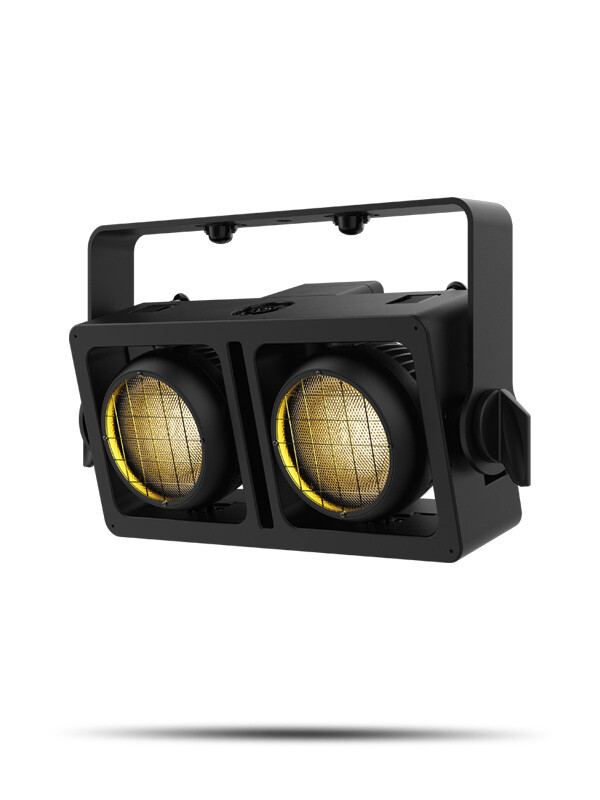

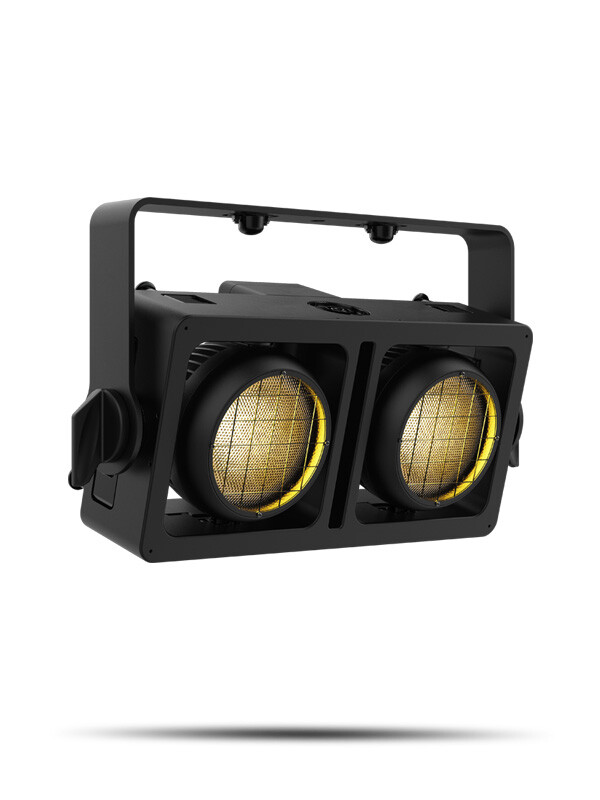

STRIKE Array 2 is an outdoor-ready audience blinder powered by two intense warm white LEDs housed in independently focusable pods. An emulated “amber shift” warms the color temperature of the light as it dims to deliver a classic tungsten look. Its variable PWM and high CRI make it ideal for broadcast applications. Thanks to a custom interlocking system CHAUVET Professional has developed, STRIKE Array 2 can be interconnected with multiple Array units for scalable design configurations without any tools. Omega-Bracket locks are also installed both on the yoke and the back of the IP65 blinder to give you a streamlined truss mounting process.
AT A GLANCE
Intense 2 pod blinder/strobe rated IP65 for all-weather use
Emulated “red shift” to mimic incandescent fixtures perfectly.
Individual pan (or tilt, depending on mount orientation) of each head to allow for directional adjustment of light output.
Innovative interlocking system to connect multiple Strike Array 2s and Strike Array 4s together.
Multiple mounting locations with ¼ turn adaptors for creative and convenient rigging options
16-bit dimming control for smooth, perfect fades
Strobe functionality for high-impact effects on the fly
Easy to use OLED display
Adjustable Pulse Width Modulation (PWM) and RDM (Remote Device Management) for added flexibility
SPECIFICATIONS
OPTICAL
Light Source: 96 LED (WW) 1.33 W, (2.2 A), 2700 K, 50,000 hours life expectancy
Light Source: 10 LED (Amber) 2.63 W, (.750 A), 50,000 hours life expectancy
Color Temperature (at full): 2792 K
CRI: 92.9
TLCI: 91
Beam Angle: 60.3°
Field Angle: 99°
Illuminance (total): 360 lux @ 5 m
Selectable PWM: 600 Hz, 1,200 Hz, 2,000 Hz, 4,000 Hz, 25,000 Hz
DYNAMIC EFFECTS
Dimmer: Electronic
Strobe Rate: 0 to 25 Hz
Dim Modes: 4
Built-in Automated Programs: Yes
CONSTRUCTION / PHYSICAL
Dimensions: 18.5 x 10.4 x 6.3 in (469 x 264.5 x 161 mm)
Dimensions (shipping size): 20.7 x 8.5 x 12.8 in (525 x 215 x 325 mm)
Weight: 17.6 lb (8 kg)
Weight (shipping weight): 21.6 lb (9.8 kg)
Exterior Color: Black
Housing Material: Aluminum die-cast
CONNECTIONS
Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
Power Input: Seetronic Powerkon IP65
Power Output: Seetronic Powerkon IP65
Data Connectors: 5-pin IP65 XLR
Cable Length (power): 5 ft (1.5 m)
CONTROL
Control Protocol: DMX, RDM
DMX Channels: 1, 2, 3, 4, 5, or 8
ELECTRICAL
Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
Power Linking: 11 units @ 100 V; 13 units @ 120 V; 22 units @ 208 V; 24 units @ 230 V;25 units @ 240 V
Power and Current: 124 W, 1.24 A @ 100 V, 60 Hz [3.1 A inrush]
Power and Current: 123 W, 1.04 A @ 120 V, 60 Hz [1.8 A inrush]
Power and Current: 127 W, 0.61 A @ 208 V, 60 Hz [1.9 A inrush]
Power and Current: 129 W, 0.56 A @ 230 V, 50 Hz [3.8 A inrush]
Power and Current: 130 W, 0.54 A @ 240 V, 50 Hz [1.2 A inrush]
Power and Current (resting): 3 W, .021 A @ 100 V, 60 Hz
Power and Current (resting): 4 W, .029 A @ 120 V, 60 Hz
Power and Current (resting): 7 W, .040 A @ 208 V, 60 Hz
Power and Current (resting): 9 W, .040 A @ 230 V, 50 Hz
Power and Current (resting): 10 W, .044 A @ 240 V, 50 Hz
CERTIFICATIONS / QUALIFICATIONS
CE, MET
IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)
WHAT'S INCLUDED
Strike Array 2
Seetronic Powerkon IP65
Omega bracket with mounting hardware
Warranty Card
Quick Reference Guide or User Manual
OPTIONAL ACCESSORIES
Professional Clamps: CTC-50HC, CTC-50HCN
Seetronic Powerkon power linking cables
5-pin IP or Non-IP DMX Cables
