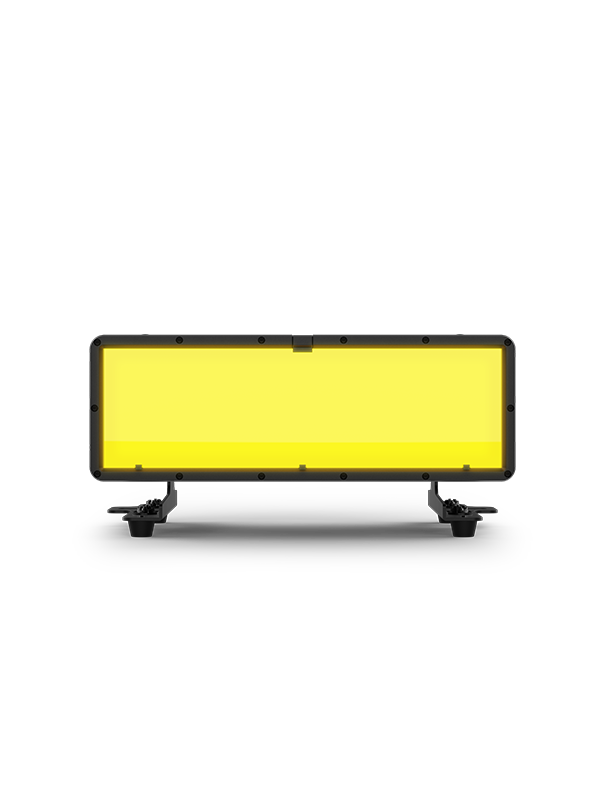

STRIKE Bolt 1C is an intense IP65-rated strobe featuring integrated Smart Frost that enables this first-of-its-kind fixture to shift instantly from powerful strobe bursts to smooth color block effects. Its proprietary Tool-Free Stacking streamlines interconnecting STRIKE Bolt 1C with STRIKE Array fixtures in stackable configurations to create unique blinder/strobe arrays. Multiple hanging points, end-to-end connections, and floor feet provide maximum rigging versatility. Its included stealth filter can be attached to make the fixture nearly disappear for on-camera use. STRIKE Bolt 1C delivers a classic strobe look with modern performance ideal for concert and touring, festivals and event productions in any environment, live or broadcast, indoors or out.

Intense, stackable strobe with added color effects rated IP65 for all-weather use

Twin strobe tubes for intense strobe effects

Single row of RGBA LEDs for color block effects behind an integrated smart glass (electronic frost) filter

Designed for rigging versatility with multiple hanging points, end-to-end connections, floor feet, and the ability to be rigged inline with STRIKE Array fixtures to create unique blinder/strobe arrays.

SPECIFICATIONS

OPTICAL

• Light Source: 66 LEDs (quad-color) SMD 5050, 0.9 – 1.5 W, (470 mA), 50,000 hours life expectancy
• Light Source: 392 LEDs, (CW) 1.5 W, 5660 K, 50,000 hours life expectancy
• Color Temperature (at full): 5692K
• CRI: 89.2
• Beam Angle (Combine): 77.5° x 55.8°
• Beam Angle (Plate): 84.6° x 73.6°
• Beam Angle (Beam): 77.7° x 54.7°
• Field Angle (Combine): 130.6° x 104.4°
• Field Angle (Plate): 139.7° x 114.5°
• Field Angle (Beam): 129.1° x 102.3°
• Lumens (Combined): 20,251
• Lumens (Plate): 2735
• Lumens (Beam): 23,736
• Illuminance (Combined): 605 lux @ 5 m
• Illuminance (Plate): 66 lux @ 5 m
• Illuminance (Beam): 729 lux @ 5 m
• Selectable PWM: 1000 Hz, 2000 Hz, 4000 Hz, 6000 Hz, 25,000 Hz, 64,000 Hz

DYNAMIC EFFECTS

• Dimmer: Electronic
• Shutter/Strobe: Electronic
• Strobe Rate: 0 to 30 Hz
• Standalone Color Mixing: Yes
• Dim Modes: 4
• Built-in Automated Programs: Yes

CONSTRUCTION / PHYSICAL

• Dimensions: 14.96 x 8.39 x 11.81 in (380 x 213 x 300 mm)
• Weight: 19 lbs. (8.7 kg)
• Exterior Color: Black
• Housing Material: Magnesium alloy

CONNECTIONS

• Power Connection: Edison (Local) plug to Seetronic Powerkon IP65
• Power Input: Seetronic Powerkon IP65
• Power Output: Seetronic Powerkon IP65
• Data Connectors: 5-pin IP65 XLR, Seetronic etherCON IP65
• Cable Length (power): 5 ft (1.5 m)

CONTROL

• Control Protocol: DMX, RDM
• DMX Channels: 10, 11, 13, 17, 20, 25, 27, 40
• Modes/Personalities: 8 personalities (7, 10, 12, 16, 19, 32, 40, 53)

ELECTRICAL

• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power Linking: 4 units @ 120 V; 6 units @ 208 V; 8 units @ 230 V
• Power and Current: 329 W, 2.82 A @ 120 V, 60 Hz
• Power and Current: 326 W, 1.82 A @ 208 V, 60 Hz
• Power and Current: 323 W, 1.48 A @ 230 V, 50 Hz

CERTIFICATIONS / QUALIFICATIONS

• IP Rating: IP65, temporary outdoor/wet use, with pressure equalizing M12 GORE valve
• Temperature (Ambient): -4 °F to 113 °F (-20 °C to 45 °C)

WHAT'S INCLUDED

• STRIKE Bolt 1C
• Stealth Filter
• Seetronic Powerkon IP65
• Omega bracket with mounting hardware

OPTIONAL ACCESSORIES

• STRIKE Array Flush Bracket
• Professional Clamps: CTC-50HC, CTC-50HCN
• Safety Cable: SC-08
• IP Rated Seetronic® Powerkon Extensions
• IP Rated DMX cables
• UPLOAD 03 software uploader
