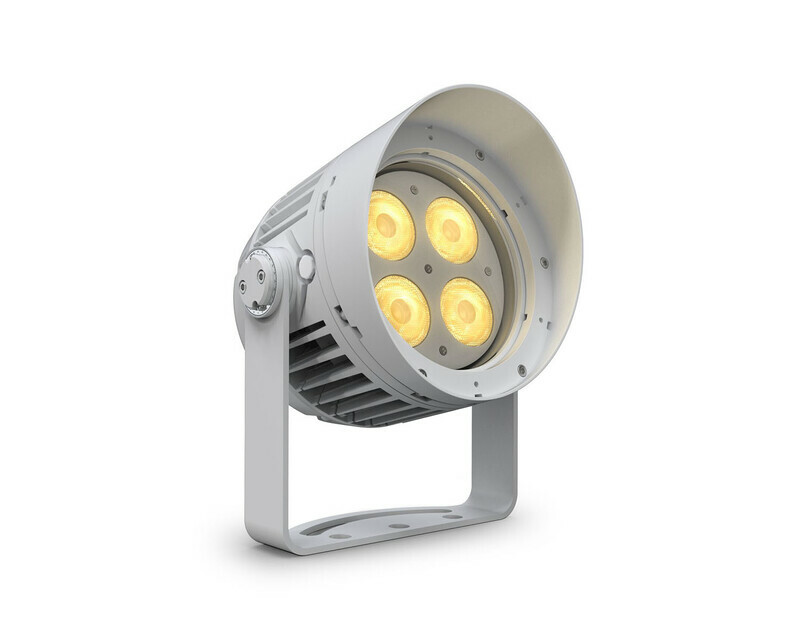

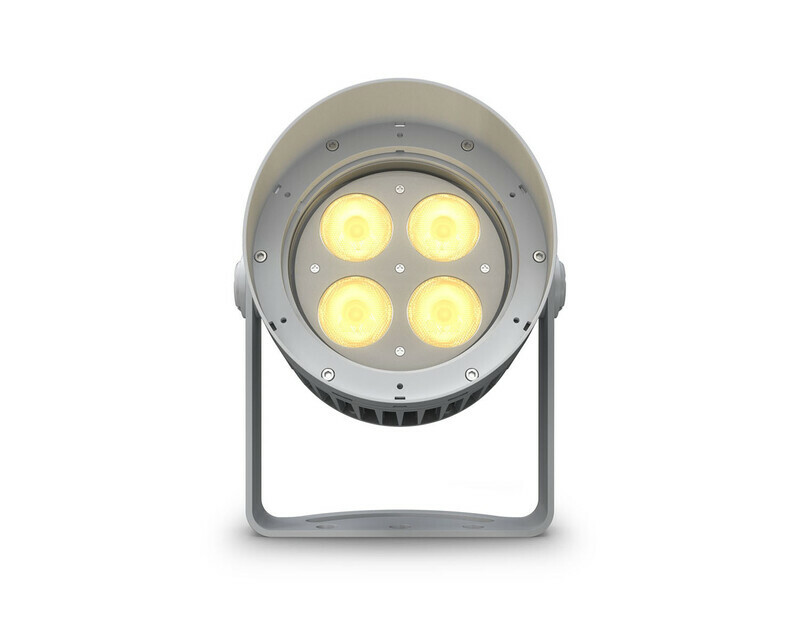

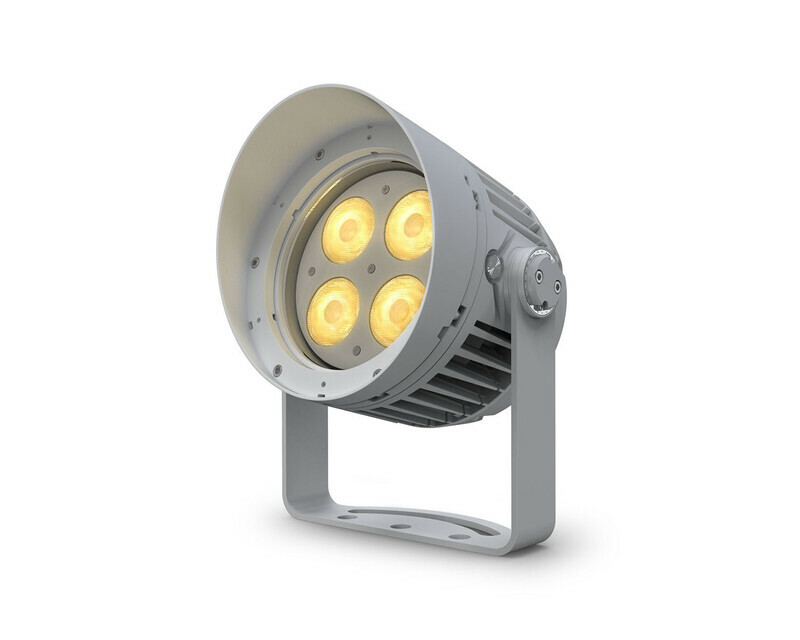

Arhitektonski LED RGBL Wash reflektor sa IP67 zaštitom za vanjsku primjenu. 4 RGBL LED x 20 W.

Ilumipod LL iz Iluminarca spaja plug-and-play instalaciju s preciznom optikom za stvaranje besprijekornih impulsa svjetla i boja.
Unosi energiju u bilo koji arhitektonski projekt u svim vremenskim uvjetima, ima elegantan, niskoprofilni oblik i četiri-u-jednom LED optiku.
Napredno RGBL (crvena, zelena, plava, limeta) miješanje boja otključava prave bijele boje od oštrih i hladnih tonova do toplih užarenih jantarnih, kao i intenzivnih, zasićenih nijansi.

• 4-in-1 RGBL Color Mixing
• 50,000 hour LED Lifespan
• Beam Angle: 6.5º, or change with optional Beam Filters
• Illuminance: 4,414 lux @ 5 m
• IP Rating: 67
• Integrated Yoke
• Optional Beam Spread Filters can be applied without breaking IP Seal

Downloads

 Ilumipod SL IES Files

 Ilumipod SL Photometrics Report

 Ilumipod SL User Manual

 Ilumipod SL Quick Reference Guide

 Ilumipod SL DMX Chart

 Ilumipod SL Specifications

 2D CAD Drawing

 3D CAD Drawing

Specifications

Light Source and Optical Specifications

• Light Source: 4 LED (quad-color RGBL) 20 W, (1 A)
• Light Source Life Expectancy: 50,000 hours based on LED manufacturer’s specifications
• Installed Optics: 6°
• Optional Optics: Medium Filter, Wide Filter, Very Wide Filter, Asymmetrical Filter
• Beam Angle: Installed Optics: 6.4°, Medium Filter: 20.2°, Wide Filter: 32.4°, Very Wide Filter: 34.8°, Asymmetrical Filter: 35.3° x 12.1°
• Field Angle: Installed Optics: 11.1°, Medium Filter: 40.7°, Wide Filter: 64.8°, Very Wide Filter: 73.4°, Asymmetrical Filter: 67° x 29.6°
• Cutoff Angle: Installed Optics: 18.3°, Medium Filter: 60.4°, Wide Filter: 140.8°, Very Wide Filter: 150.4°, Asymmetrical Filter: 97.5° x 53.2°
• Lumens: Installed Optics: 2,113, Medium Filter: 1,884, Wide Filter: 1,562, Very Wide Filter: 1,479, Asymmetrical Filter: 1,775
• Iluminance: Installed Optics: 4,414 lux @ 5 m, Medium Filter: 413 lux @ 5 m, Wide Filter: 118 lux @ 5 m, Very Wide Filter: 87 lux @ 5 m, Asymmetrical Filter: 299 lux @ 5 m
• Efficacy At Full: 34 lm/W
• Color Temperature Presets: 1800K - 10000K

Construction & Physical Specifications

• Dimensions: 8.11 x 7.76 x 8.54 in (206 x 197 x 217 mm)
• Fixture Color: Off white, C5-M
• Housing Material: Cast aluminum
• Lens Cover: Impact resistant glass
• Mounting Options: Bracket, Hole Diameter 10M
• Weight: 9 lb (4.1 kg)

Control Specifications

• Control Protocol: USITT/DMX-512a/RDM
• Operating Modes: Selectable personalities
• Personalities:
• Solid (1-Channel)
• Arc 1 (3-Channel)
• Arc 1+D (4-Channel)
• Arc 2 (4-Channel)
• Arc 2+D (5-Channel)
• Arc Full (8-Channel)
• Special 2 (9-Channel)
• Data Connections:
• 6.25 ft (1.9 m) waterproof cable, bare wired to hardwired
• Fixture Setup: RDM Only
• Standalone Control: Yes
• Recommended Control Cable Specification: Gepco DLC224

Electrical System Specifications

• Electronic
• Input Voltage: 100 to 277 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
• 58 W, 0.494 A @ 120 V, 60 Hz, PF: 0.97
• 56 W, 0.304 A @ 208 V, 60 Hz, PF: 0.89
• 55 W, 0.270 A @ 230 V, 50 Hz, PF: 0.85
• 56 W, 0.274 A @ 277 V, 60 Hz, PF: 0.81
• Power Supply: Electronic internal
• Recommended Power Cable: 14 AWG (3x 2.08 mm2)

Thermal Specifications

• BTUs At Various Voltages:
• 198 BTUs/hr @ 120 V, 60 Hz
• 191 BTUs/hr @ 208 V, 60 Hz
• 188 BTUs/hr @ 230 V, 50 Hz
• 191 BTUs/hr @ 277 V, 50 Hz
• Cooling: Convection
• Maximum Surface Temperature: 167 °F (75 °C)
• Minimum Distance To Flammable Surface: .98 ft (0.3 m)
• Minimum Distance To Illuminated Surface: 3.28 ft (1 m)
• Operating Temperature Range: -40 °F to 113 °F (-40 °C to 45 °C)
• Startup Temperature Range: -4 °F to 113 °F (-20 °C to 45 °C)

Regulatory & Voluntary Qualification

• Environment Details: Outdoor/wet, with pressure equalizing M12 GORE valve. Please refer to the User Manual for more detailed information on installation.
• Environment Locations: Wet
• Impact Resistance Rating: IK10
• Installation Orientation: Any
• Vibration Rating: 3G
• Warranty: 36-month manufacturer’s limited warranty (for covered regions only)
• Wind Load Rating: EPA: .280 ft²

Accessories

• Included: Filter Frame
• Optional: Medium filter, Wide filter, Very Wide, Asymmetrical Filter
• Required: RDM Device

Order Code

• Ilumipod SL: ILUMIPODSL
• Ilumipod SL Medium Spread Filter: ILUMIPODSLM
• Ilumipod SL Wide Spread Filter: ILUMIPODSLW
• Ilumipod SL Very Wide Spread Filter: ILUMIPODSLVW
• Ilumipod SL Asymmetrical Spread Filter: ILUMIPODSLASYM
